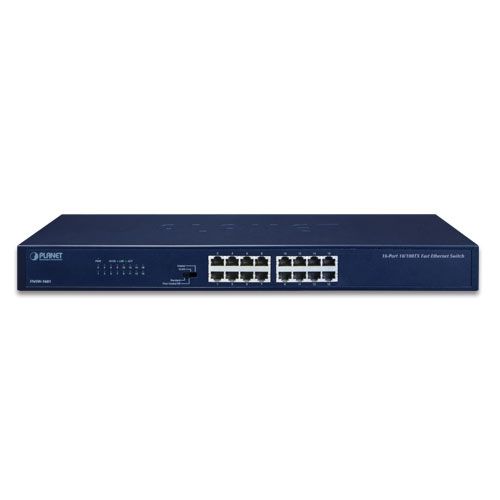

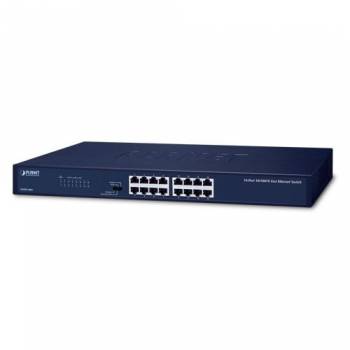

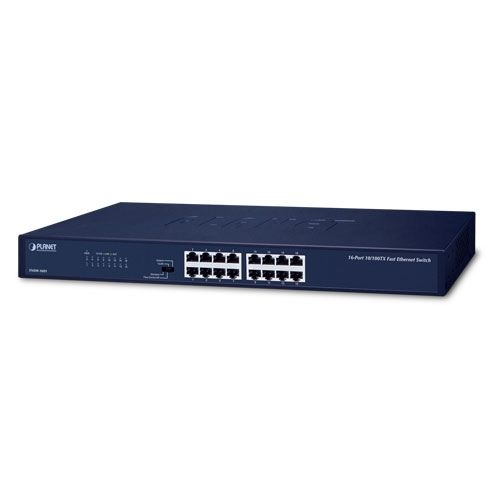

PLANET FNSW-1601 – Energy-efficient 16-Port Fast Ethernet Switch with DIP Mode Control

The PLANET FNSW-1601 is a power-saving, high-performance 16-port Fast Ethernet switch ideal for SOHO and SMB applications. Engineered for energy efficiency and network reliability, the FNSW-1601 features DIP-switch-based mode selection to adapt to diverse deployment needs with no configuration software required.

DIP Switch Operating Modes:

• Standard (Default): All ports function in standard 10/100 Mbps auto-negotiation mode.
• Flow Control Off: Disables IEEE 802.3x flow control.
• VLAN Mode: Isolates ports 1–14; each can only communicate with ports 15 and 16 (uplinks).
• Extend Mode: Ports 1–8 support up to 200m transmission at 10 Mbps, ideal for long-range links.

Green Networking & Energy Saving:

• Intelligent power scaling based on cable length
• IEEE 802.3az EEE compliant
• Power savings up to 22% without compromising performance

Performance & Applications:

• 3.2Gbps switching fabric
• Wire-speed Store-and-Forward switching
• Up to 2.38Mpps throughput
• Ideal for backbone or departmental deployments

Plug and Play Simplicity:

• Auto-negotiation for 10/20 or 100/200 Mbps
• Auto-MDI/MDI-X for simple cabling
• No configuration needed

Technical Specifications:

Ports:

• 16 x 10/100BASE-TX RJ45 with Auto MDI/MDI-X

Switching:

• Switching Fabric: 3.2Gbps
• Throughput: 2.38Mpps
• MAC Address Table: 8K entries
• Max Packet Size: 1522 bytes

Power & Consumption:

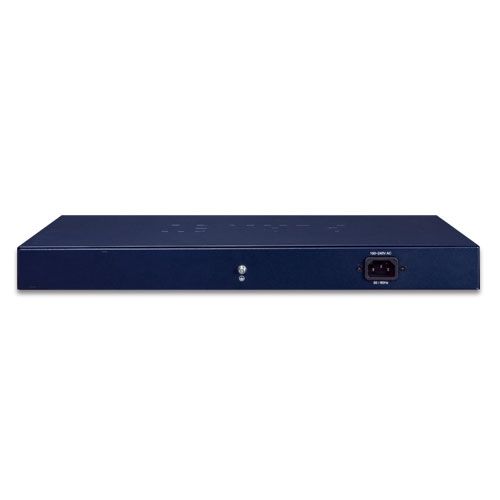

• Power Input: 100~240V AC, 0.2A, 50–60Hz
• Max Consumption: 1.3W / 4.4BTU

Physical & Environmental:

• Dimensions: 440 x 140 x 44 mm (1U)
• Weight: 1.3 kg
• Operating Temperature: 0~50°C
• Humidity: 5–95% RH (non-condensing)

Standards Compliance:

• IEEE 802.3 (10BASE-T)
• IEEE 802.3u (100BASE-TX)
• IEEE 802.3x (Full Duplex Flow Control)
• IEEE 802.3az (Energy Efficient Ethernet)
• FCC Class A, CE certified
