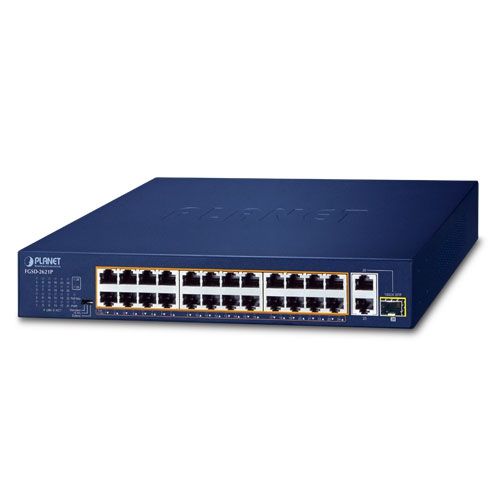

PLANET FGSD-2621P – 26-Port Fast Ethernet PoE+ Switch with Gigabit Uplink and 185W PoE Budget

The PLANET FGSD-2621P offers a cost-effective and robust PoE+ networking solution tailored for businesses, surveillance systems, and workgroup networks. Featuring 24 Fast Ethernet ports with IEEE 802.3at PoE+ support (up to 32W per port), plus two Gigabit RJ45 uplinks and one shared 1000BASE-X SFP interface, the switch provides high-capacity data and power delivery in one compact unit.

A 185W PoE power budget ensures seamless powering of IP cameras, VoIP phones, and access points. With three operational modes (Standard, VLAN, Extend), users gain flexible configuration options. The Extend mode allows 250m PoE transmission at 10Mbps, greatly reducing installation costs for remote devices. Its PD Alive Check function monitors connected devices and automatically resets power to unresponsive units, improving network resilience.

Key Features:

• 24 x 10/100Mbps PoE+ ports (up to 32W per port)
• 2 x Gigabit RJ45 + 1 x SFP (combo) uplink interfaces
• 185W total PoE budget
• Extend Mode for up to 250m PoE transmission
• PD Alive Check and VLAN isolation support
• Fan-cooled metal housing with ESD and surge protection

Technical Specifications:

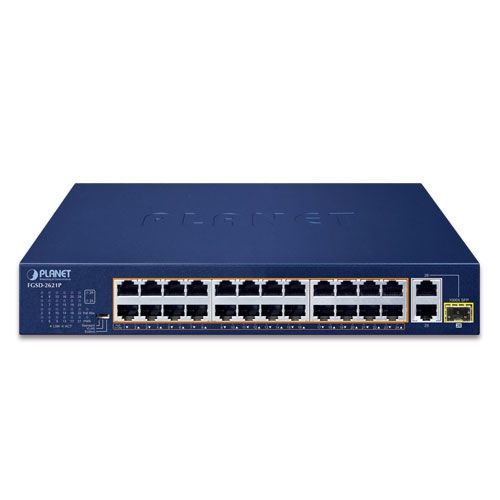

Physical Ports:

• 24 x 10/100BASE-TX RJ45 with PoE+ support (Ports 1–24)
• 2 x 10/100/1000BASE-T RJ45 (Ports 25–26)
• 1 x 1000BASE-X SFP (shared with Port 26)

Power over Ethernet:

• IEEE 802.3at/af compliant (PoE+ / PoE)
• Per port output: 55V DC, max. 32W
• Total power budget: 185W
• Supports PD auto detection, alive check
• Range: 100m in standard mode, 250m in extend mode @ 10Mbps

Switching Specifications:

• Switching capacity: 8.8Gbps
• Forwarding rate: 6.5Mpps
• Architecture: Store-and-Forward
• MAC table: 16K entries
• Jumbo frame: 16K bytes
• Supports IEEE 802.3az Energy-Efficient Ethernet (EEE)

Operating Modes (via DIP switch):

• Standard: Default PoE operation
• VLAN: Ports 1–24 isolated, only uplinks allowed
• Extend: Ports 1–8 operate at 10Mbps, reach up to 250m

Mechanical and Protection:

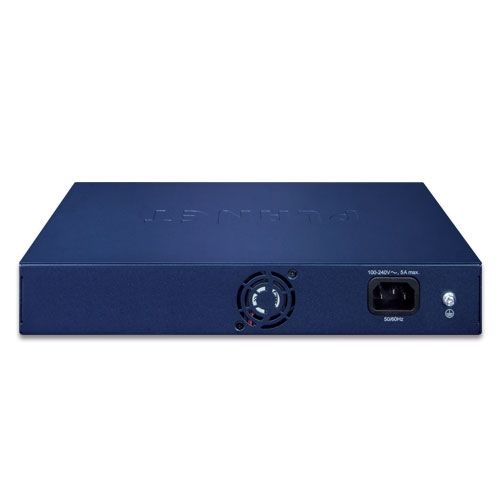

• 11-inch metal case, 1U height
• Weight: 1.87 kg
• LEDs: Power, PoE, Link/ACT
• Fan-cooled design for stability
• ESD protection: ±6KV (contact), ±8KV (air)
• Surge immunity: ±6KV (common mode)

Environmental Conditions:

• Operating temperature: 0–50°C
• Operating humidity: 5–95% RH (non-condensing)
• Storage temperature: -10–70°C
• Storage humidity: 5–95% RH
