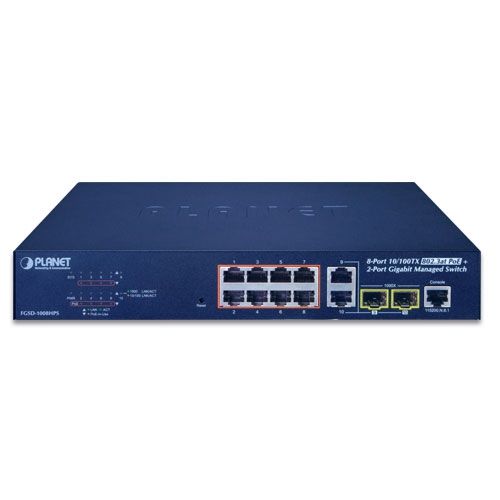

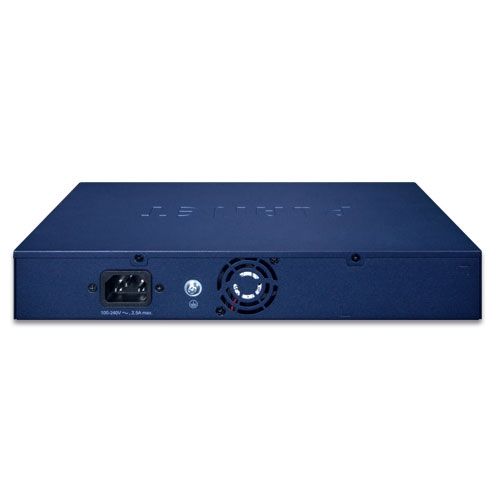

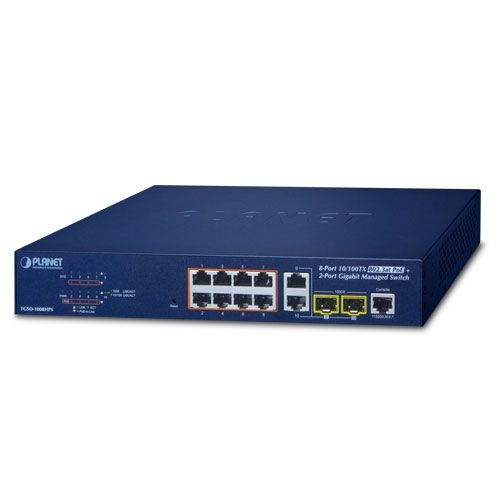

PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
|
166,41 EUR |
|
|
( 198,03 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226094 |
|---|---|
| Mfg Part No: | FGSD-1008HPS |
| UPC/EAN: | 4711605281034 |
| Weight: | 1.28 kg |
Product information for Planet FGSD-1008HPS:
PLANET 8-Port PoE+ Managed Switch with 2 Gigabit Uplinks and SFP – Advanced Layer 2+ Control for SMB and Surveillance Networks
The PLANET 8-Port PoE+ Managed Switch is designed to deliver robust performance, intelligent management, and high-power PoE in a compact, rack-mountable metal chassis. With 8 IEEE 802.3af/at-compliant PoE+ ports and two shared Gigabit RJ45/SFP combo uplink ports, it’s a versatile switch ideal for IP surveillance, VoIP, Wi-Fi APs, and small-to-medium enterprise networks.
Key Features:
- 8 PoE+ Ports delivering up to 30W per port (Total PoE Budget: 120W)
- 2 Combo Gigabit RJ45/SFP Uplink Ports
- Strong metal housing with active fan for cooling
- Supports VLAN, QoS, ACLs, IGMP/MLD snooping, and LACP
- Advanced management via SNMP v3, SSH v2, TLS v1.2
- Dual IPv4/IPv6 stack for future-proof deployment
- Centralized web, CLI, and SNMP administration
Technical Details:
Physical Interfaces:
- 8 x 10/100BASE-TX RJ45 PoE+ Ports
- 2 x 10/100/1000BASE-T or 100/1000BASE-X SFP Combo Ports
- 1 x Console Port (RS232 to RJ45)
- 1 x Reset Button
PoE Capabilities:
- Standard: IEEE 802.3af (15.4W) / 802.3at (30W)
- Total Budget: 120W
- Power Mode: End-span
- Supports 8 PDs @ 7W, 7 PDs @ 15.4W, or 4 PDs @ 30W
Switching Performance:
- Switch Fabric: 5.5Gbps
- Throughput: 4.17Mpps @64 bytes
- MAC Address Table: 16K entries
- Jumbo Frame Support: up to 16K bytes
- Store-and-Forward architecture
Layer 2 Features:
- VLAN: 802.1Q, port-based, Q-in-Q, voice VLAN, GVRP (up to 256 VLANs)
- Spanning Tree Protocol: STP, RSTP, MSTP with BPDU Guard
- Link Aggregation: 1 LACP + 1 static trunk group (2 ports each)
- IGMP/MLD Snooping v1/v2/v3 for multicast control
- QoS: IEEE 802.1p, CoS, DSCP, IPv4/IPv6 classification
- Storm control, bandwidth limiting
Security:
- IP/MAC-based ACLs
- DHCP Snooping, ARP Inspection, IP-MAC-Port binding
- Static MAC entries and MAC filtering
Management & Monitoring:
- CLI via Console/Telnet, Web GUI
- SNMP v1/v2c/v3, LLDP, PLANET Smart Discovery Tool
- Remote Syslog logging
- Dual-stack IPv4/IPv6 management
- SNTP support
- Web-based firmware and configuration tools
Power & Housing:
- Input: 100–240V AC
- Max Consumption: 121W
- Dimensions: 280 x 180 x 44 mm
- Weight: 1503 g
- Rugged metal enclosure with internal fan
Environmental Conditions:
- Operating Temperature: 0–50 °C
- Relative Humidity: 10–90% (non-condensing)
Certifications:
- FCC Part 15 Class A, CE
Questions & answers
What is the delivery time of PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP?
The article PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet FGSD-1008HPS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP always at the best possible price. We can give you a discount of 2% on PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
