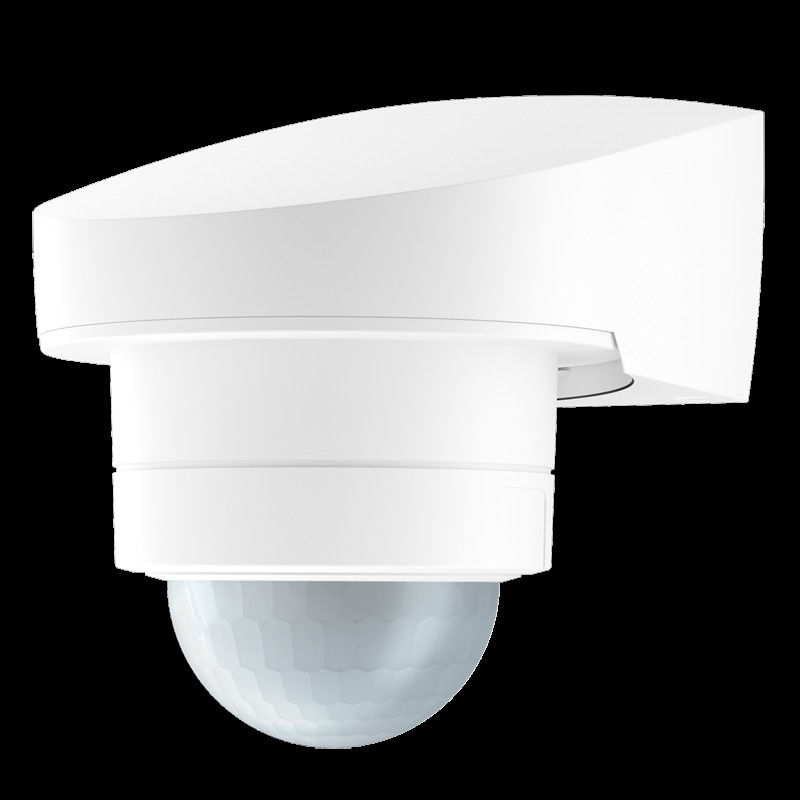

Jung BM240S1AWW motion detector 240° AP
|
90,24 EUR |
|||||||||||
|
( 107,39 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2116001 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BM240S1AWW | ||||||||||
| UPC/EAN: | 4011377321427 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG BM240S1AWW:
Motion detector 240°, surface-mounted
Intended use
¦ Automatic switching of lighting, depending on heat movement and ambient brightness
¦ Wall mounting, adapter for corners and adapter for laying cables on plaster included in delivery
¦ Surface-mounted installation indoors and outdoors
Product features
¦ Passive infrared sensor
¦ Splash-proof and dust-proof
¦ Creep-by protection
¦ Adjustable brightness threshold
¦ Adjustable follow-up time
¦ Parallel connection of several motion detectors possible
¦ Cover for limiting the detection area
Technical data
Recommended installation height: 2 m
Installation height: 1.8 ... 4 m
Horizontal detection angle: 240°
Vertical detection angle: 180°
Rotation: 160° horizontal
Range with radial movement direction: approx. 5 m
Range with tangential movement direction: approx. 12 m
Switching zones: 276
Brightness setting: approx. 2 ... 2,000 lx
Follow-up time: approx. 10 s ... 15 min
Nominal voltage: AC 220 ... 240 V ~, 50/60 Hz
Degree of protection: IP54
Protection class: II
Incandescent lamps: 1000 W
Inductive transformers: 1000 VA
Electronic transformers: 1000 W
Uncompensated: 500 W
Parallel compensated: 500 W
HV-LED lamps: max. 350 W
Capacitive load: 132 µF
Dimensions (W x H x D): 84 x 89 x 90 mm
Ambient temperature: -20 ... +50 °C
Color: white
Design: similar to RAL 9010
Manufacturer: JUNG
Type: BM240S1AWW
Questions & answers
What is the delivery time of Jung BM240S1AWW motion detector 240° AP?
The article Jung BM240S1AWW motion detector 240° AP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG BM240S1AWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung BM240S1AWW motion detector 240° AP always at the best possible price. We can give you a discount of 2% on Jung BM240S1AWW motion detector 240° AP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Jung BM240S1AWW motion detector 240° AP we can offer you a price of 84,83 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
