Hager XEV653C Ldst.park COM 2x M3T2 32A 3ph & 2x M2 16

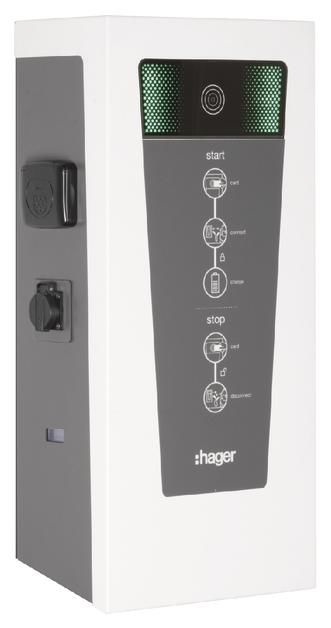

Witty park charging station 2x22kW M3 socket and 2x2.3kW Schuko socket, RFID.Wallbox charging station with powder-coated stainless steel housing for charging electric or plug-in hybrid vehicles. Charging mode Mode 3 according to EN 61851 or charging mode 2 or 1 for direct charging via Schuko socket, secured via the charging station supply line. Charging station with Mode 2 Schuko socket 16 A, integrated Mode 3 socket Type 2 32 A (3-phase) and access authorization via RFID cards. Permanently installed charging station for indoor/outdoor use and suitable for the vehicle plug type. Consists of wall housing with cable holder and plug shelf, cable entry for the supply voltage, charging button and LED displays. Electrical protection/switching control consisting of power supply unit, circuit breaker, charging controller, current measuring coil, installation contactors and feed-in terminals. The micro-controlled charging controller (charging current adjustable max. 32 A) communicates with the vehicle and controls the charging. The status is displayed via green LEDs: LED bar ready for use (flashing), immediate charging (LED bar pulsating), night charging (delay with round LEDs or charging with LED bar pulsating) and fully charged (LED bar permanently lit). Switching between delayed and immediate, automatic charging is possible at the touch of a button. Charging can be started externally via an activation contact (230V AC switching signal). With an optional charging control module, the charging current is adjusted to the available free capacity of the house installation or use for targeted charging of renewable energy (PV, CHP). Access authorization with RFID cards must be programmed into the charging controller. Charging in charging mode Mode 3 takes place automatically after the vehicle is connected and the RFID card is authenticated. Alternatively, the charging process can also be controlled using a QR code that is scanned with an Internet-enabled mobile phone. The power supply of the charging station must have a separate circuit. Connecting several charging stations to the same circuit is not permitted. Each charging station must be fitted with a separate residual current device (RCD) and circuit breaker (MCB), e.g. in the distribution cabinet. The charging controller must be configured before initial commissioning. Notes: The charging station can be operated in 1-phase or 3-phase mode. Only use compatible Hager charging cables Mode 3 with a plug or coupling. Parallel charging with different charging modes is not possible. Optional stand with floor base for free-standing installation.
Type: XEV653C
