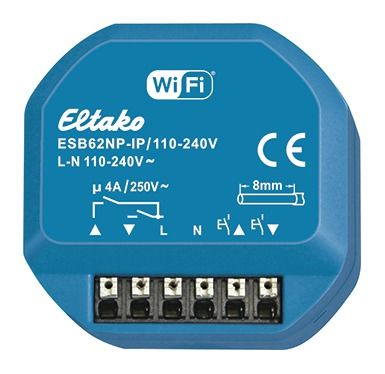

Eltako ESB62NP-IP/110-240V shading actuator IP 30062003

Shading actuator IP via Wi-Fi, 1+1 normally open 4A/250V AC, not potential-free, for a shading element motor 230V AC. With automatic end position detection. Apple Home certified, REST API and built for Matter. Standby loss only 0.8 watts. For built-in installation. 49x51mm, 25mm deep. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². Contact switching in zero crossing to protect the contacts. Supply, switching and control voltage locally 110-240V. If the supply voltage fails, the device is switched off in a defined manner. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With control input for a mains voltage control button that may be mounted in front of it. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and enables over-the-air updates (OTA). This actuator is Apple Home certified, which is why it can officially be controlled directly via the Apple Home app and Siri. No additional controller or gateway is required for this. The following options are available via the Apple Home app: - Create if-then automations including geofencing. - Manual switching. - Retrieve status. An Apple control center, e.g. HomePod mini, is required for remote access. The optional configuration of the actuator is done via the Eltako Connect app. A development version of the REST API is available on the device's online product page. This is continuously being developed further. The actuator meets all requirements for the Matter standard and is built for Matter.
Type: ESB62NP-IP/110-240V
