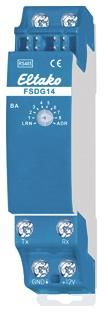

Wireless electricity meter data gateway for meters with IR interface IEC 62056-21. 2 channels. Standby loss only 0.4 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. This electricity meter data gateway can make the data of an electronic household meter (eHZ-EDL) with IR interface in accordance with IEC 62056-21 and SML protocol version 1 available to the RS485 bus. Either for forwarding to an external computer or Professional Smart Home Controller. Regular flashing of the green LED indicates that the FSDG14 is receiving data from the meter. The active power, up to 4 meter readings and the serial number are transmitted. The serial number corresponds to the last 4 bytes (hex) of the server ID printed on the meter. The FAM14 radio antenna module is used to send data to the building radio. Reference data is sent on channel 1 and delivery data on channel 2. This requires that the FAM14 assigns a device address, as described in the operating instructions. If the active power or meter reading changes, the relevant telegram is sent immediately and all telegrams including the serial number are sent cyclically every 10 minutes. The FSDG14 can be read using the PC tool PCT14. The rotary switch can be used to select between the following operating modes (OBIS codes according to IEC 62056-61): 1: Purchase totalizer (1.8.0) and purchase power on channel 1, delivery totalizer (2.8.0) and delivery power on channel 2. 2: Purchase tariff 1 (1.8.1) and tariff 2 (1.8.2) and purchase power on channel 1, delivery tariff 1 (2.8.1) and tariff 2 (2.8.2) and delivery power on channel 2. 3: Purchase tariff 1 (1.8.1) and tariff 2 (1.8.2) and purchase power on channel 1, delivery totalizer (2.8.0) and delivery power on channel 2. 4: Purchase totalizer (1.8.0) and purchase power on channel 1, delivery tariff 1 (2.8.1) and tariff 2 (2.8.2) and delivery power on channel 2. The Connection is made using an IR scanner AIR. The scanner is attached with its fastening magnet above the IR output of the meter and connected with its connection cable to the terminals Rx, GND and +12V.
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Eltako 30014066 FSDG14 RS485 bus electricity meters, data gateway 30,014,066?
The article Eltako 30014066 FSDG14 RS485 bus electricity meters, data gateway 30,014,066 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 30014066 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 30014066 FSDG14 RS485 bus electricity meters, data gateway 30,014,066 always at the best possible price. We can give you a discount of 2% on
Eltako 30014066 FSDG14 RS485 bus electricity meters, data gateway 30,014,066 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Eltako 30014066 FSDG14 RS485 bus electricity meters, data gateway 30,014,066 we can offer you a price of 57,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
