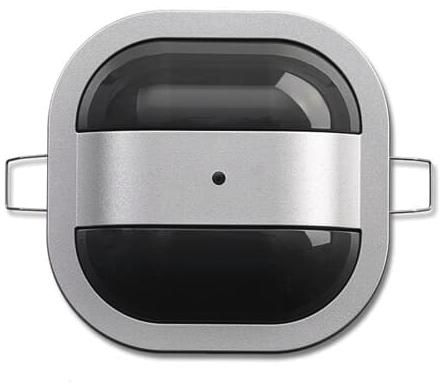

Busch Jaeger 2CKA006800A2766 BJ 6819/60-183 Busch presence detector compact relay aluminum silver
|
140,28 EUR |
|||||||||||
|
( 166,93 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1923285 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA006800A2766 | ||||||||||
| UPC/EAN: | 4011395217900 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Busch Jaeger 2CKA006800A2766:
For brightness and motion-dependent switching of lighting.
With high-load relay for LED operation.
Detection range (at 3 m installation height): circular: Seated people: up to Ø 6.5 m, walking people: up to Ø 8 m.
Extension of the detection range through extension combination.
Installation height 23 mm.
For semi- and fully automatic operation.
Additional on/off option via button input.
With continuous light / continuous off function (8 hours), can be activated via intelligent extension input.
With brightness-independent test mode for evaluating the detection area.
With teach-in function of the brightness switching threshold, IR service handheld transmitter required.
With detection display in test mode.
Ceiling mounting via integrated spring clip. Anti-twist protection via additional quick clamping.
Adjustment elements accessible from the front.
Monitoring density: 48 sectors with 496 switching segments.
Switch-off delay: approx. 1 min. - 30 min. or short-term pulse adjustable.
Can be remotely controlled via IR service handheld transmitter 6843.
Suitable for suspended ceilings with a panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
For physical reasons, the detection range is smaller when approaching from a central location.
When used in conjunction with a relay/contactor, an RC extinguishing element, item no. 6899, must be provided.
Recommendation: HaloX® 100 from Kaiser (item no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg
Type: 6819/60-183
