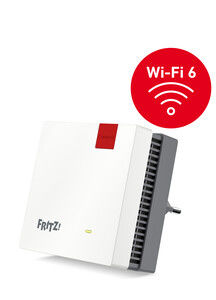

AVM FRITZ!Repeater 1200 AX

Ultra-fast Wi-Fi 6 throughout the entire home networkThe FRITZ!Repeater 1200 AX quickly and easily increases the range of any WLAN. Innovative Wi-Fi 6 ensures higher data rates and better distribution of the available bandwidth to all connected devices. At the same time, the FRITZ!Repeater 1200 AX ensures perfect radio coverage right into the last corner of the house and apartment. Thanks to Wi-Fi 6 with two radio units, data rates of up to 3,000 Mbit/s (2,400 MBit/s / 5GHz + 600 MBit /s / 2.4GHz). In the WLAN Mesh, several distributed WLAN access points (e.g. FRITZ!Box and FRITZ!Repeater) are combined into a single, intelligent WLAN network. The distributed FRITZ! devices communicate with each other and optimize the performance of all WLAN devices. Intelligent technologies such as crossband repeating, band steering and the extended auto channel ensure optimal WLAN coverage at all times. This means the best connection is always established where it is needed. Streaming, gaming and downloads reach every corner of every room seamlessly and at top speed. The entire WLAN conveniently only has one name and one password and is securely encrypted.

Highlights

• More WLAN range for all connected devices
• Innovative Wi-Fi 6 designed for a demanding home network with a variety of WLAN devices
• Support for 160 MHz wide channels for ultra-fast WLAN with up to 3,000 MBit/s (WLAN AX)
• Two radio units for ultra-fast transmissions in the 5 GHz band (up to 2,400 MBit/s) and the highest range in the 2.4 GHz band (up to 600 MBit/s)
• For very high demands (e.g. parallel 4K Streams) in a home network with a fast Internet connection and several WLAN devices used at the same time
• WLAN Mesh: Several WLAN access points are combined into a single intelligent WLAN network with optimal performance
• Intelligent automatic band selection (cross-band repeating)
• Automatic takeover of the existing WLAN encryption of the FRITZ!Box
• Ultra-fast Gigabit LAN connection for setting up a LAN bridge or for network devices without WLAN function
• Support for the latest WPA3 security standard and encrypted connections in public WLAN hotspots (OWE)
• Simple and secure installation at the touch of a button (WPS)
• Support for the FRITZ!Box's WLAN guest access
• Determination of the optimal location using an LED display of the connection quality or using the FRITZ!App WLAN
• Energy savings through night service for WLAN and ECO mode
• Compact design, no larger than a socket

Product type

• Repeater

Specifications

• Area of application: Indoor

Shipping

• WEEE: 86990390

Power supply

• Power supply: integrated

Data transmission

• WLAN standard: IEEE 802.11ax - WiFi 6, IEEE 802.11ac - WiFi 5, IEEE 802.11n - WiFi 4
• Security standard: WPA , WPA2, WPA3, WPS
• WLAN frequency band: dual band
• WPS
• time-controlled WLAN

Basic properties

• Color: white, gray
• Height: 80 mm
• Length/depth: 37 mm
• Width: 80 mm
• Weight: 101 g

Scope of delivery

• AVM FRITZ!Repeater 1200 AX
• Installation instructions
