ALLNET DIN-RAIL wall housing, T220mm, light gray, IP66, ÜS, 16x M25 ALL-DIN-101-AC

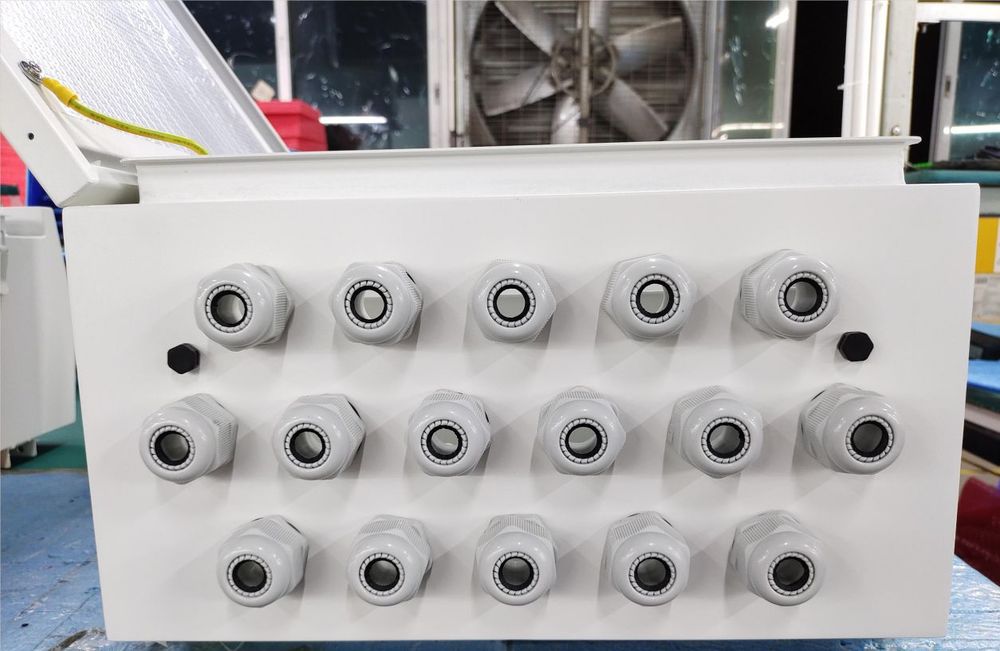

Highlights: 3PIN AC100~240V power INPUT 2P circuit breaker 10A including 2P SPD surge protection device / surge arrester 1x 4 port SC single mode fiber tray 16x M25 cable connectors out/inputs IP66 waterproof housing and is suitable for long-term outdoor use. DIN rail for mounting other end devices such as switches or power supplies (see accessories) Incl. metal strip for pole mounting The ALL-DIN-101-AC defines itself as a first-class solution for the outdoor use of IT end devices, equipped with a DIN Rail top hat rail. This case combines a number of outstanding features that make it a groundbreaking choice.

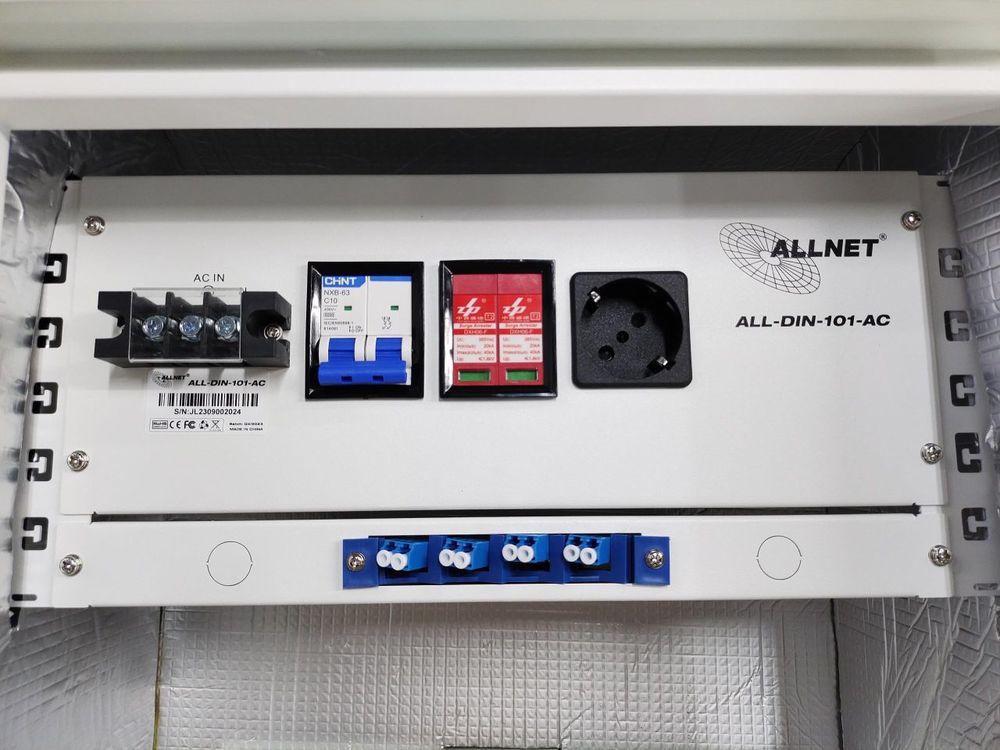

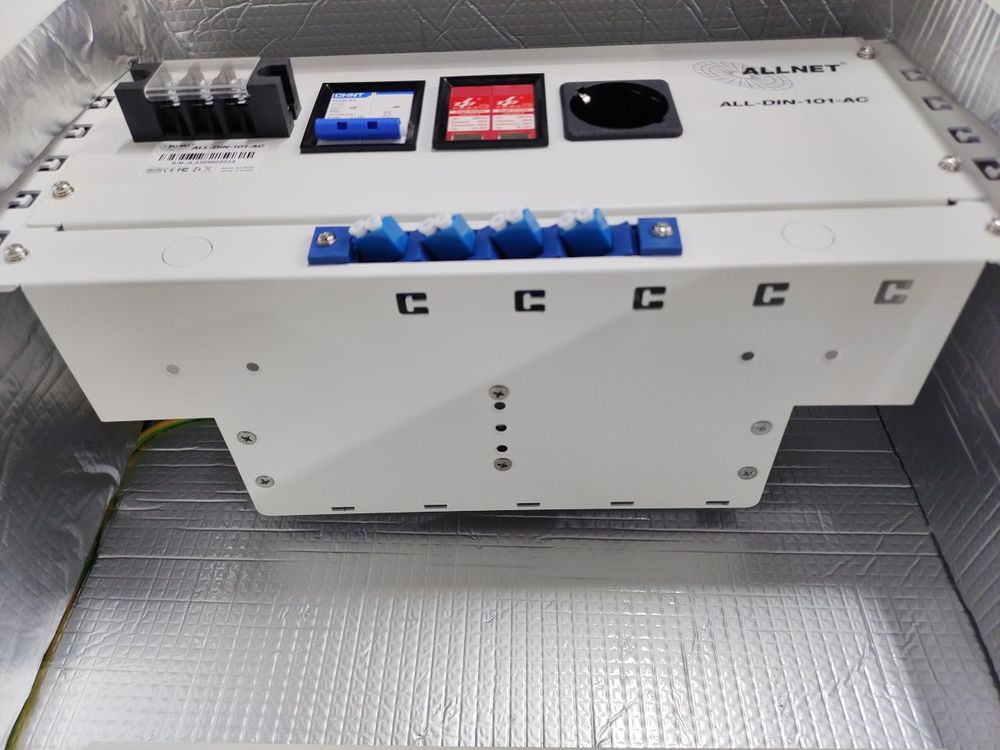

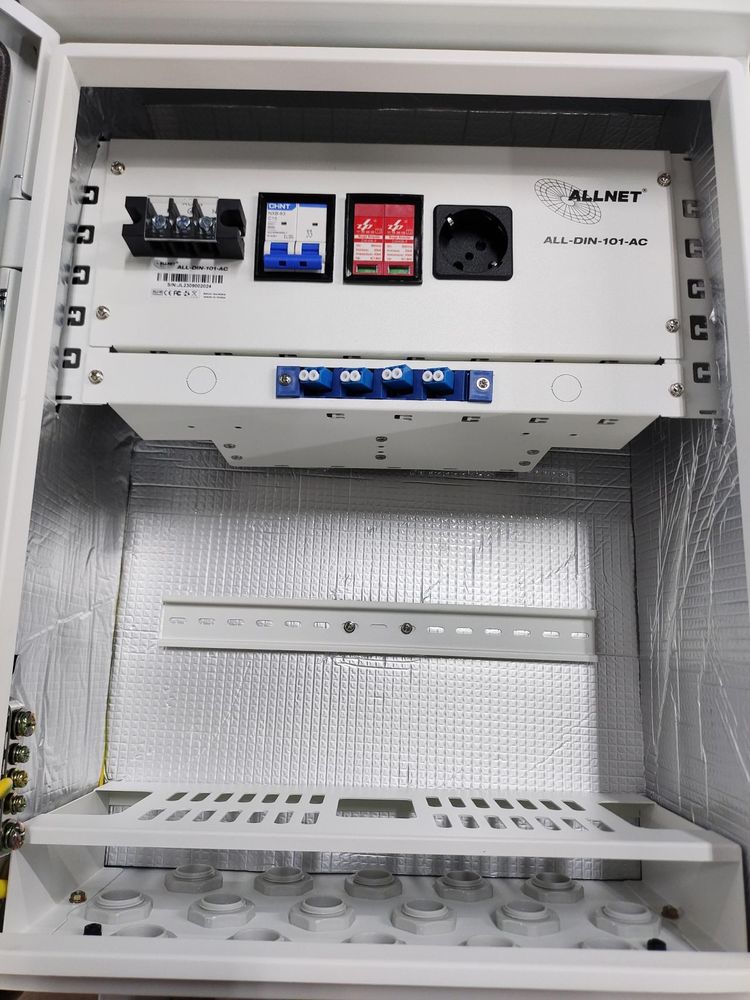

Inside the housing there are not only double 2P circuit breakers with 2 protective poles, but also a 2P SPD surge arrester and a practical AC protective contact socket. It also has a 4-port SC optical fiber single-mode fiber tray and other innovative elements.
The application areas of the housing are diverse and range from sophisticated video surveillance solutions to reliable forest monitoring and the establishment of stable WIFI/radio connections.

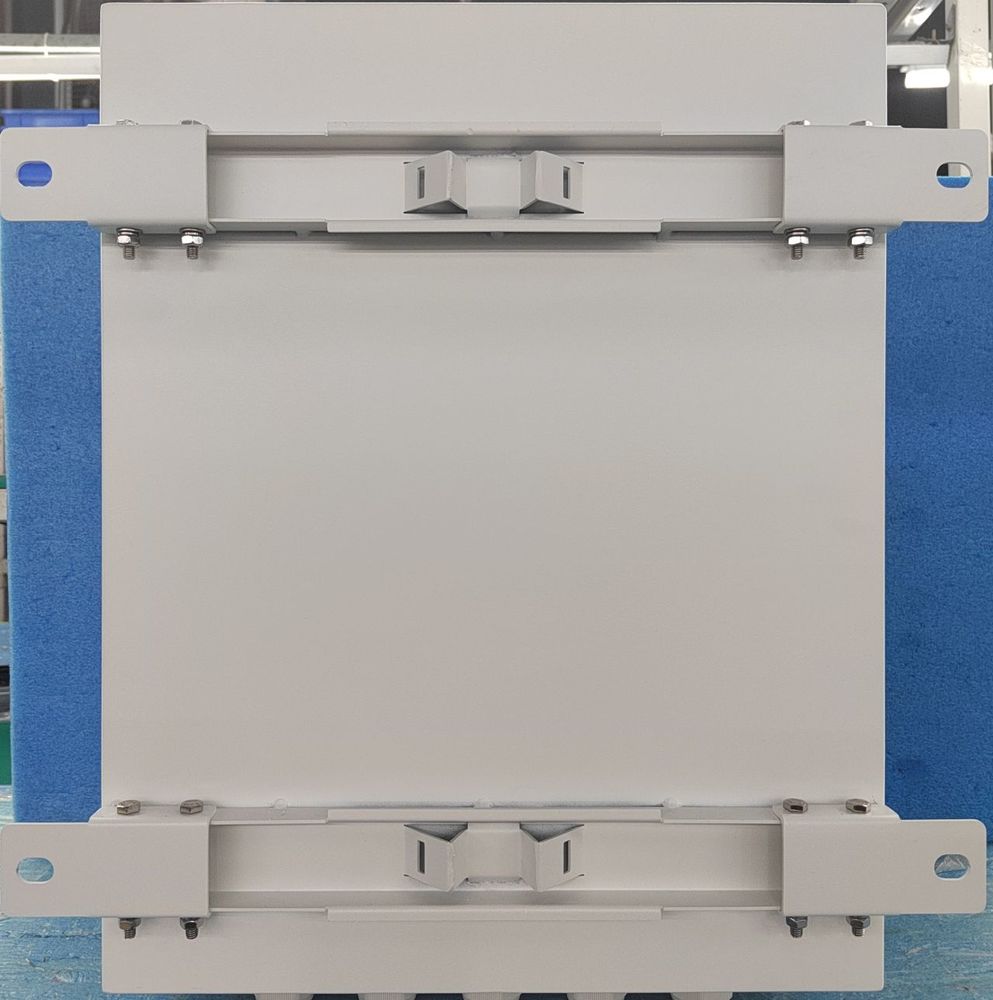

With an impressive waterproof rating IP66) and rust protection, the housing stands for long-lasting outdoor use. It can be attached to walls or securely mounted to poles using the included metal mast strap. This case sets new standards in terms of protection, versatility and robustness in the outdoor environment.

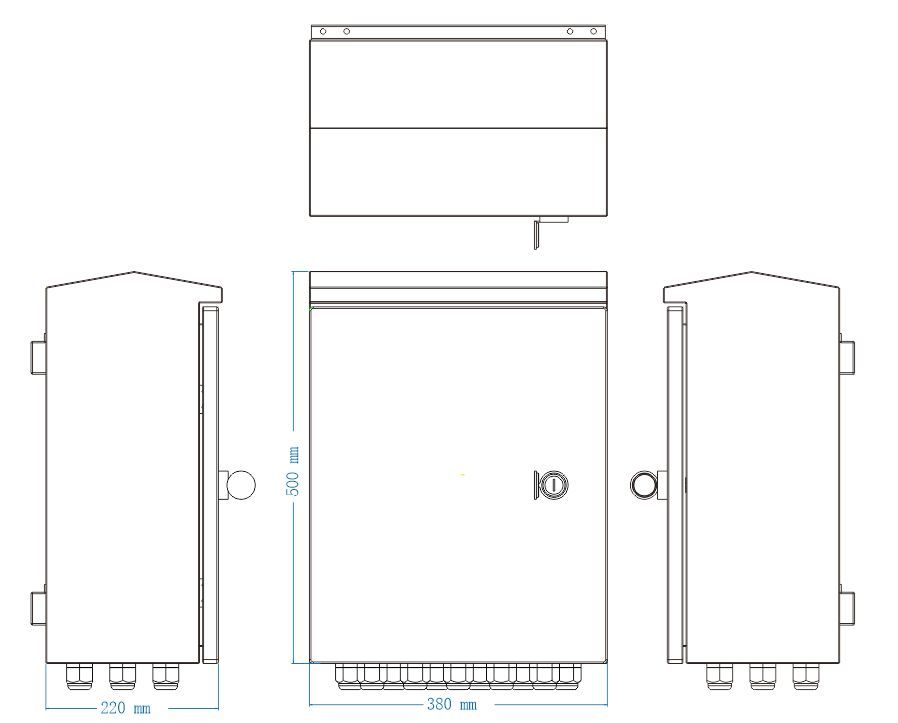

Technical Details: Parameter Specifications Power input AC100~240V, 50/60Hz, 10A AC output AC output 1 channel Fiber tray 4*LC Circuit breaker 2P 10A Connector 16*M25,waterproof Operating Temperature - 40°C ~ 75°C Storage Temperature - 40°C ~ 85°C Humidity (no condensation) 0~95% Dimension(H×W×D) 500×380×220mm Material Metal Color White Net-weight 15kg Mounting Option Wallmount and Pole-Mount
