TCS PAIF020/002 audio:pack EB for 2 residential units with EB speaker ASI12000

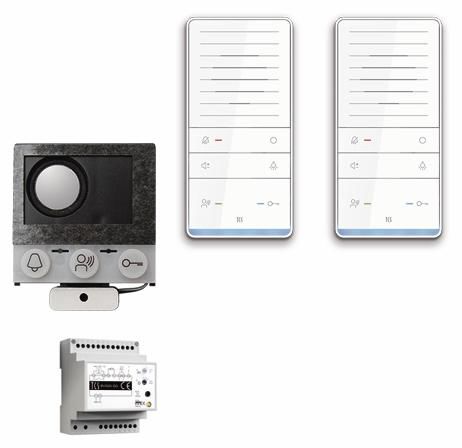

audio:pack PAIF020/002 for 2 residential units, article number: PAIF020/002, package description, audio:pack for 2 residential units, indoor station for hands-free calling with comfort functions, built-in door loudspeaker, pre-configured TCS system components, scope of delivery, 1x built-in door loudspeaker ASI12000-0000, 2x indoor station ISW5031, 1x control unit BVS20-SG, built-in door loudspeaker ASI12000-0000, product features, device type: built-in door loudspeaker, communication technology: TCS:BUS, mounting type: can be integrated, installation behind on-site front panels, the design of the existing front panel should be clarified in advance., audio transmission: hands-free calling (standard), two-way communication (can be activated), full-duplex hands-free calling for indoor stations with handset possible, can be activated in configo, number of bell buttons: up to 16 can be connected., number of bell button extensions: up to 6 Built-in bell button extensions (ASI21000-0000 with a maximum of 32 bell buttons each) can be connected, Microphone can be removed (mm): Length of microphone cable: 250 mm / can be removed for acoustic decoupling, Volume of acknowledgement / advisory tone: adjustable, Volume of conversation: adjustable, Number of door calls (indoor stations per bell button): 2 indoor stations can be assigned to each on-site bell button., Light switching: Light switching function on unprogrammed bell button, Connection of bell buttons: on plug-in screw terminals., Module integration: 4-pin connector for 4-pin connection cable, Connection and operation of modules from the AMI series, Error display: Error display: optical/acoustic, Error flashing time (t = 0 - 255 s) adjustable with configo, Operating display: via LED pictograms: calling, speaking, door opening, error and programming mode, Commissioning and configuration: Commissioning and configuration: manual, with service device, with configuration software, Slot: 1 slot for exchangeable memory of the system configuration (ASI12000 or ASI11000). , 1 slot for data transfer from TCU2 memories, activation of additional functions: accessibility, buzzer function (acoustic door opener simulation for DC door openers), delay ex works: OFF, adjustable 1 s to 8 s, button delay (t = 0 to 25.5 s) can be activated and adjusted with configo, talk time ex works: 56 s / adjustable, slave mode., LED display: LED pictograms accessibility, can be activated in configo, if not required, the pictogram cover can be removed and hidden behind the front panel, when the accessibility function is activated, the optical door opener signal can be delayed (t = 0 to 25.5 s), Technical data, dimensions HxWxD (mm): 67x68x38, design: built-in housing, mounting dimensions HxW (mm): 75x85x40, material / color: plastic / black, permissible ambient temperature (°C): -25 to +55 °C, use indoors or in protected outdoor areas, protection class: IP24, supply voltage: +24 V ± 8 % (supply and control unit), current consumption, at rest (mA): Ia= 0.2 mA, IP= 3 mA, current consumption,maximum (mA): 24.3 mA, Number of wires: 3-wire required, Length of microphone cable: 250 mm, Scope of delivery, mounting accessories: 1x LED pictogram display, 1x spacer plate 1 mm, 1x spacer plate 2 mm, Accessories, built-in bell button extension: ASI21000-0000, hands-free speaker ISW5031-0145, Product features, Device type: TASTA hands-free speaker AUDIO PLUS WS, Communication technology: TCS:BUS and video 2-wire:BUS, Mounting type: Surface-mounted with TASTA mounting shell AP and via flush-mounted box, Table mounting with separate table accessories ZIT5000-0030, Number of acoustic call distinctions: Acoustic call distinction between 2 front door, apartment door and internal calls, Automatic call shutdown, Automatic hands-free after internal call: Can be activated / deactivated with configo, Hands-free (hands-free) / manually controlled intercom can be activated, conversation volume: volume button for adjusting the voice volume when a voice connection is established and for adjusting the ring tone volume when there is no voice connection
Type: PAIF020/002
