TAROX Workstation E5175BM- i5,16GB,W7500,W11P

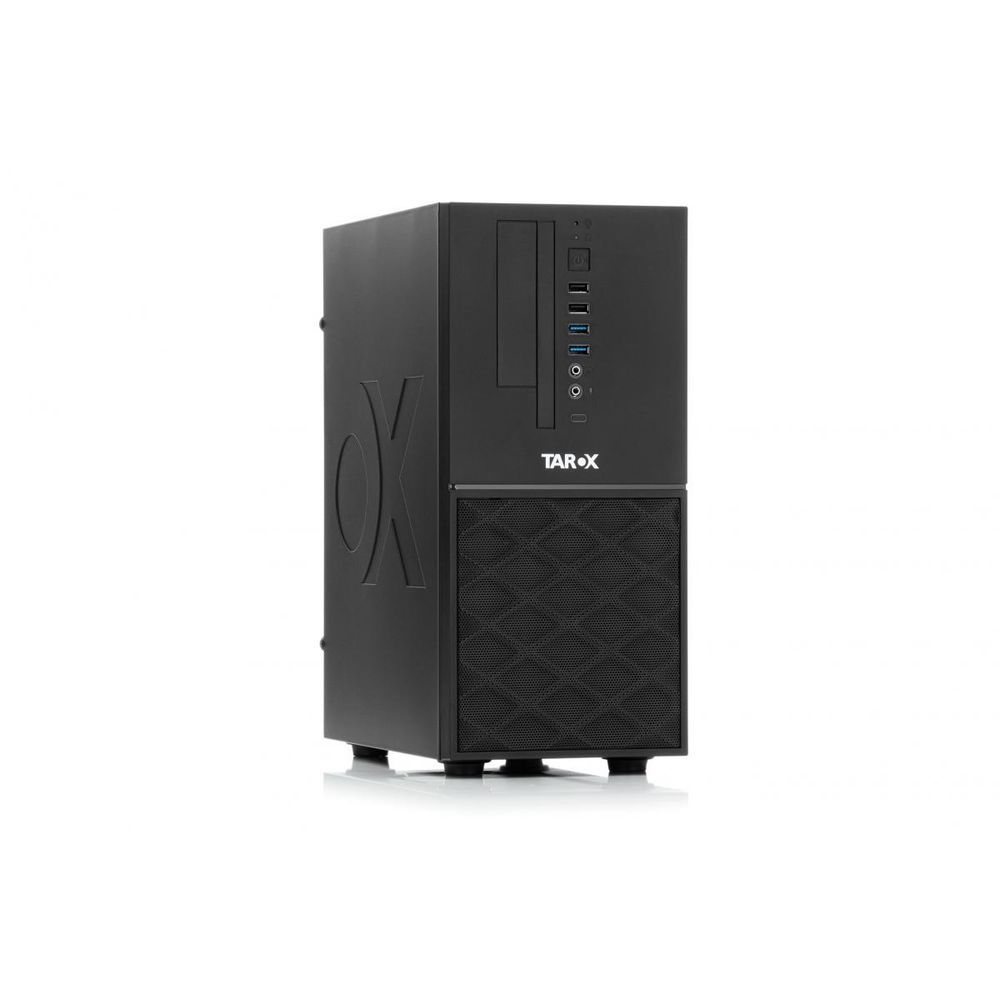

The TAROX Micro Tower Workstation is a compact and versatile solution for professional users in fields such as CAD, graphic design, 3D rendering, and video editing. Equipped with the 14th Gen Intel Core™ i5-14400 processor, 16 GB DDR5 RAM, and the powerful AMD Radeon™ Pro W7500 graphics card, this workstation provides an ideal combination of computing and graphics power.

The Intel Core™ i5-14400 processor features 10 cores (6 P-Cores and 4 E-Cores) and reaches a maximum turbo frequency of up to 4.70 GHz. The AMD Radeon™ Pro W7500 graphics card with 8 GB GDDR6 memory supports up to four monitors simultaneously and delivers a maximum resolution of 7680 x 4320 at 60 Hz via DisplayPort 2.1.

The system includes a fast 500 GB M.2 NVMe SSD for quick load times and an integrated card reader for added convenience. Thanks to the Intel B760 motherboard, which supports up to 128 GB of DDR5 RAM, the workstation remains future-proof and flexible.

With its 350-watt power supply featuring 80 Plus Bronze certification, the workstation operates efficiently and reliably. Manufactured in Germany to meet ISO 9001 quality standards, the TAROX Micro Tower comes with a comprehensive 36-month warranty and on-site service for added peace of mind.

### Technical Specifications:

Operating System:

• Windows 11 Pro
• Languages: German (DE), French (FR), English (EN)

Chassis:

• Model: TAROX Micro Tower
• Form Factor: mATX
• Color: Black
• Dimensions (W x H x D): 16.0 cm x 36.1 cm x 31.0 cm
• External Bays:
- 1x 5.25-inch Slim
- 1x 3.5-inch


Power Supply:

• Power: 350 W
• Efficiency: 80 Plus Bronze

Motherboard:

• Chipset: Intel® B760 Express
• Form Factor: µATX

Processor:

• Model: Intel® Core™ i5-14400
• P-Core Turbo Frequency: 4.70 GHz
• E-Core Turbo Frequency: 3.50 GHz
• Cores: 6 P-Cores / 4 E-Cores
• Cache: 20 MB
• Hyper-Threading: Yes
• Virtualization Technology: Yes
• Power: 65 W (Boost up to 148 W)
• Socket: 1700

Graphics:

• Model: AMD Radeon™ Pro W7500
• Memory Size: 8 GB GDDR6
• Memory Bus: 128-bit
• Graphics Bus: PCI-Express 4.0 x16
• Ports: 4x DisplayPort 2.1
• Max Resolution: 7680 x 4320 @ 60 Hz
• Supported Technologies: DirectX 12.2, ShaderModel 6.6, OpenGL 4.6

RAM:

• Capacity: 16 GB DDR5
• Number of Modules: 2 (expandable up to 128 GB)

Storage:

• Capacity: 500 GB
• Type: M.2 NVMe SSD

Drives:

• Card Reader: Yes

Front Ports:

• 2x USB 2.0
• 2x USB 3.2 Gen1
• 1x USB 3.2 Gen1 Type-C
• Line-in: Yes
• Line-out: Yes

Rear Ports:

• 2x USB 2.0
• 2x USB 3.2 Gen1
• 1x USB 3.2 Gen2 Type-C
• 1x USB 3.2 Gen2
• 1x VGA
• 1x HDMI
• 2x DisplayPort
• 1x RJ-45 (Gigabit LAN)
• 2x PS/2
• Audio: Line-in, Line-out, Microphone

Internal Ports:

• 2x PCI Express x1
• 1x PCI Express x16 4.0
• 2x USB 2.0
• 1x USB 3.2 Gen1 (Type-A)
• 1x USB 3.2 Gen1 (Type-C)
• 2x Serial Ports
• 1x Parallel Port
• 4x S-ATA Controller

Certificates:

• CE Marking: Yes
• Manufactured in Germany according to ISO 9001: Yes
• WEEE Registration No.: DE 99267951

Service:

• Warranty: 36 Months
• On-Site Service: 36 Months

EAN Number:

• 4250154119813

Type: Workstation i5
