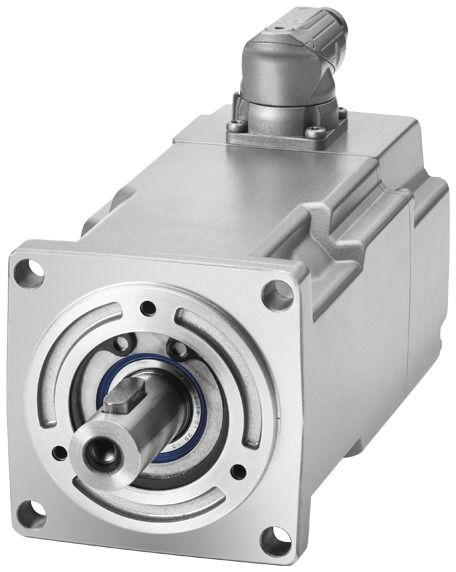

Siemens 1FK2203-4AG00-0MA0 SIMOTICS CT 1.27Nm 0.4kW 3000rpm IP64 z-We.D14x30 content_copy

SIMOTICS S-1FK2 CT servo motor M0=1.27Nm, PN = 0.4kW at nN=3000 rpm (200-240V), protection class IP64, cylindrical shaft D14x30mm, absolute encoder 22bit + 12bit multiturn (encoder AM22DQC), with OCC interface, connector size M12, rotatable, SIMOTICS S-1FK2 servo motor for wide use in industrial environments. The SIMOTICS S-1FK2 servo motors are compact and highly dynamic synchronous motors and are characterized by a high power density, protection class and overload capacity. The motors are available in two versions: in High Dynamic (maximum dynamics due to low inertia for highly dynamic applications with small moving masses) and in Compact (precise and stable control for medium to large moving masses due to a medium moment of inertia). The SIMOTICS S-1FK2 servo motors fully exploit their strengths in the system with the SINAMICS S210 frequency converter and the simple connection via the one-cable technology (One Cable Connection OCC). The advantages include the short adjustment and positioning times, the fast and precise disturbance control as well as the stable control with high dynamics. The servo motor can be configured according to different requirements. For example, with and without a holding brake, protection class IP64 or IP64, the absolute encoders single-turn or multi-turn and much more. The servo motors are also available in different shaft heights, 20 - 100. A shaft sealing ring is available to achieve protection class IP64 and to attach to the motor for retrofitting or as a spare part. SIMOTICS - the right motor for every motion control application.
Type: 1FK2203-4AG00-0MA0
