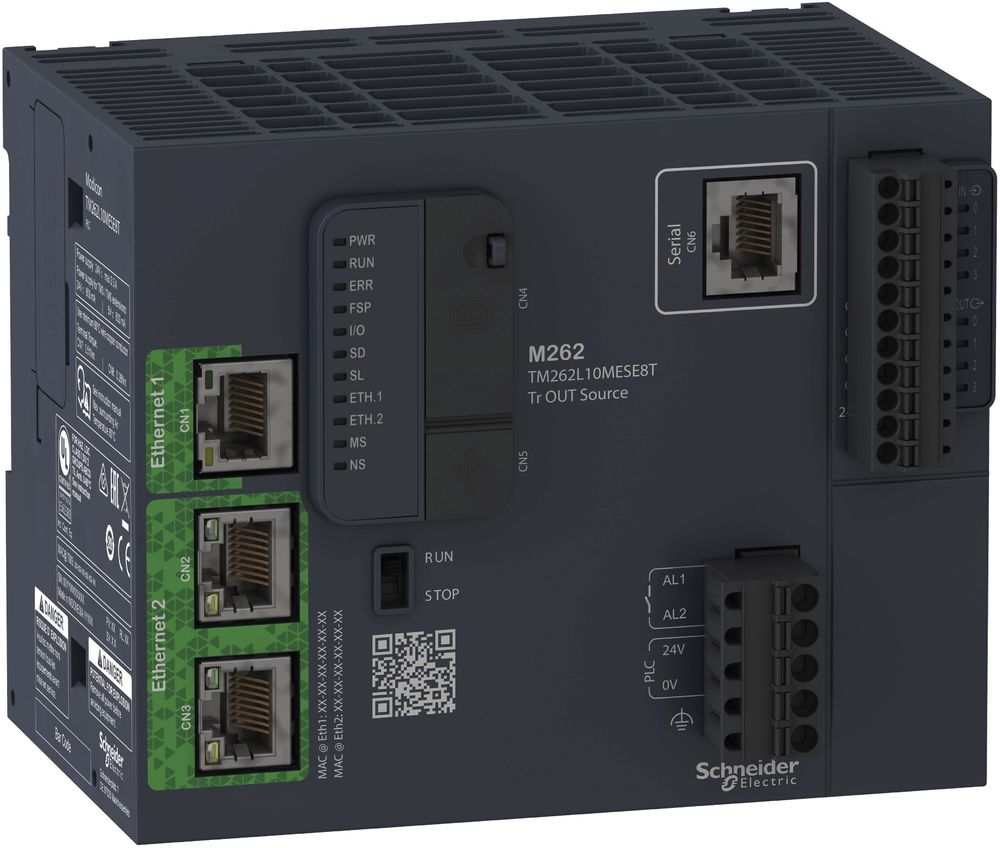

Product information for Schneider Electric TM262L10MESE8T:
IIoT-capable Modicon M262 PLC controller with 5ns / Boolean instruction for the automation of industrial machines with high demands on performance and connectivity. Highly networkable thanks to supported cloud protocols (MQTTs, HTTPs, OPC UA) and data formats (JSON). At the same time protected by comprehensive cybersecurity and encrypted communication (TLS). Implementation of complex communication structures with secure network segmentation thanks to up to 5 separate Ethernet ports (2 integrated, expandable to 3 with TMSES4) with their own MAC address and their own IP address space. A switched Ethernet dual-port switch (1Gbit/s) with RJ45 sockets for daisy chain and RSTP, an Ethernet port (100Mbit/s) Ethernet/IP and Modbus/TCP. Available Ethernet services MQTTs, OPC UA Server, HTTPs Methods (API), DHCP Client/Server, DNS Client, POP3s Client, RSTP, SMTPs. SNMP Agent/Manager, SNTP, NTP Client/Server, SQL remote access, webserver, Webvisu. An isolated RS485/RS232 interface with RJ45 socket for Modbus SL (ASCII/RTU) Master/Slave, ASCII character string. A total of 8 fast digital I/Os (4 inputs with 20 µs / 4 outputs with 3 µs). The power supply is via 24VDC. 192MB integrated RAM memory and 256MB flash memory. Equipped with a slot for µSD card, a USB-B port for programming, a run/stop switch, real-time clock and QR code with device ID and link to technical documentation. Local and decentralized I/O expansion with Modicon TM3/TM5 I/O system. Programming and configuration using EcoStruxure Machine Expert software (download from www.se.com). PLC programming in accordance with IEC 61131-3 in the programming languages structured text (ST), function block diagram (FBD/CFC), instruction list (AWL), ladder diagram (LD) or sequential function chart (SFC) based on CODESYS V3. Connection via removable spring-loaded terminal blocks. Ambient temperature during operation -20°C to +60°C. Mounting on 35mm DIN rail or directly on control panel with optional holder. Certifications in accordance with CE, cULus, cULus HazLoc Class I, RCM, EAC, Achilles L2, EU RO Mutual (Marine certification), OPC Foundation.
Type: TM262L10MESE8T
Questions & answers
What is the delivery time of Schneider Electric TM262L10MESE8T Schneider PLC controller M262 5ns/instruction Ethernet?
The article Schneider Electric TM262L10MESE8T Schneider PLC controller M262 5ns/instruction Ethernet is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Schneider Electric TM262L10MESE8T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric TM262L10MESE8T Schneider PLC controller M262 5ns/instruction Ethernet always at the best possible price. We can give you a discount of 2% on
Schneider Electric TM262L10MESE8T Schneider PLC controller M262 5ns/instruction Ethernet if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schneider Electric TM262L10MESE8T Schneider PLC controller M262 5ns/instruction Ethernet we can offer you a price of 955,41 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
