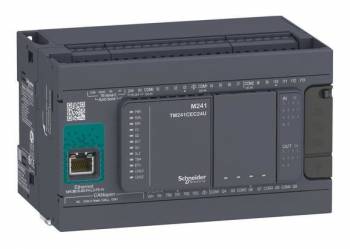

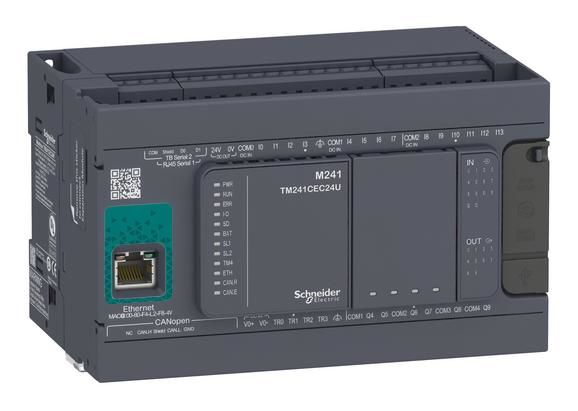

Product information for Schneider Electric TM241CEC24R:
Modicon M241 PLC controller with 22ns / Boolean instruction for the automation of compact, powerful and networked industrial machines. A total of 24 integrated I/Os, of which 14 are digital (6x standard and 8x HSC with 200kHz) inputs, 10 digital outputs (6x standard and 4x pulse generator with 100kHz). An Ethernet interface with RJ45 socket for EtherNet/IP adapter/originator and Modbus TCP client/server, I/O scanner, UDP, TCP, SQL client, SNMP client/server V1/V2, OPC UA server, SNTP client, DNS client and web server. An RS485/RS232 interface with RJ45 socket and an RS485 interface with screw terminal block for Modbus ASCII/RTU master/slave, ASCII character string. A CANopen master interface. The power supply is via 100VAC to 240VAC. The digital outputs are designed as 6x relays (2A) and 4x source transistors (0.5A or 0.1A when used as a fast output). Can be expanded with up to one plug-in module. 54MB integrated RAM memory and 128MB flash memory. Integrated control for up to 4 coordinated axes. Position Control (PTO) with trapezoidal or S-profile for 2 axes in pulse direction (P/D) mode, CW/CCW mode, PWM, FG. Equipped with a slot for SD card, a USB mini-B port for programming, a run/stop switch and QR code for direct access to technical documentation. Local and decentralized I/O expansion with Modicon TM3/TM5 I/O system. Programming and configuration using EcoStruxure Machine Expert software (download from www.se.com). PLC programming according to IEC 61131-3 in the programming languages structured text (ST), function block diagram (FBD/CFC), instruction list (AWL), ladder diagram (LD) or sequential function chart (SFC) based on CODESYS V3. Connection via removable screw terminal blocks. Ambient temperature during operation -10°C to +55°C. Installation on 35mm DIN rail or directly on control panel. Certified according to CE, cULus Listing Mark, CSA, EAC, LR, ABS, DNV-GL, ODVA, Achilles.
Type: TM241CEC24R
Questions & answers
What is the delivery time of Schneider Electric TM241CEC24R Schneider PLC control 24I/O relay Ethernet CAN master?
The article Schneider Electric TM241CEC24R Schneider PLC control 24I/O relay Ethernet CAN master is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Schneider Electric TM241CEC24R to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric TM241CEC24R Schneider PLC control 24I/O relay Ethernet CAN master always at the best possible price. We can give you a discount of 2% on
Schneider Electric TM241CEC24R Schneider PLC control 24I/O relay Ethernet CAN master if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schneider Electric TM241CEC24R Schneider PLC control 24I/O relay Ethernet CAN master we can offer you a price of 477,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
