Schneider Electric MTN6705-0008

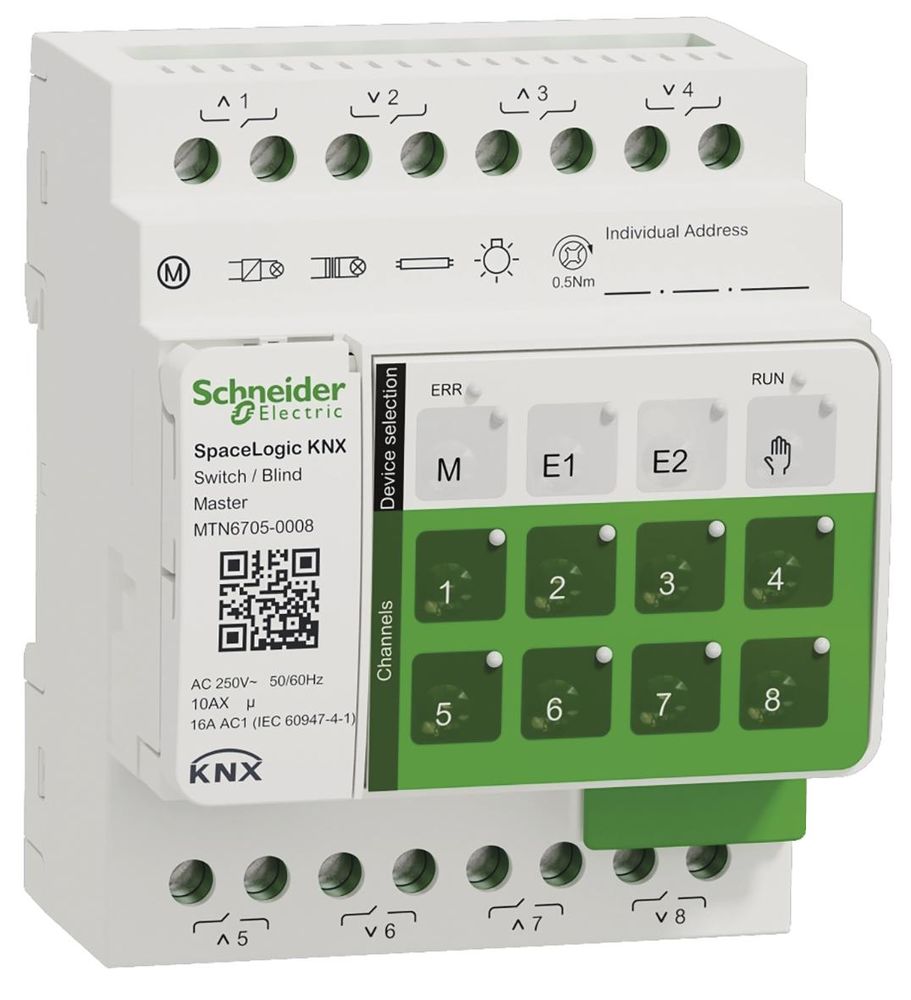

Schneider SpaceLogic KNX master switch/blind 8-fold

Combined switch and blind actuator 8-way, 16 A, REG, SpaceLogic KNX switch blind, 8-way master 8 switch outputs 4 blind outputs: The function of the blind or switching channels is freely configurable. All blind switch outputs can be operated manually using buttons. With integrated bus coupler. For mounting on DIN rails TH35 according to EN 60715. The bus is connected via a bus connection terminal, a data rail is not required. Expansion possible using SpaceLogic KNX extensions MTN6805-0008. The master controls the extensions, their power supply and communication with the bus. The number of channels can be increased by connecting SpaceLogic KNX switch blind extensions without cables and without tools. A maximum of 2 extensions can be connected to the master, so that up to 24 loads can be switched or 12 blind drives can be controlled. Supply voltage via the master: KNX bus, approx. 6.5 mA (master), approx. 9 mA (master + 1 extension), approx. 12.5 mA (master + 2 extensions). No additional ETS application or intervention in the KNX topology is required to expand the KNX installation using SpaceLogic KNX extensions (MTN6805-0008). General KNX software functions: energy saving, device security, device status, manual operation, PIN code for firmware update. Each channel can be given any name in the parameterization to simplify the assignment of group addresses. Functions of the blind/roller shutter actuator: -Running time -Idle time -Step interval -Lock function -Movement area limits -Weather alarm -8-bit positioning for height and slats -16 scenes, status and feedback function per channel. Functions of the switching actuator: -Operation as a normally closed/normally closed contact -programmable behavior for download -delay functions for each channel -staircase lighting time function with/without manual OFF function. Switch-off warning for staircase lighting time function -16 scenes per channel, central function, blocking function, linking or forced operation, feedback function for each channel. Nominal voltage: AC 250 V, 50-60 Hz. Nominal current: 16 A AC-1, IEC 60947-4-1 / 10 A, IEC 60669-2-5For each blind roller shutter channel: -Motor load 1000 VAFor each switching outputNominal load: -Incandescent lamps: 2300 W. Halogen lamps: 2300 W-LED: 200 W -Capacitive load: 10 AX, max. 140 µF -Inductive load: 10 A, cosf 0.6Relay data -Inrush current: max. 800 A/200 µs, max. 165 A/20 ms. Device width: 4 TE (72 mm) Accessories: SpaceLogic KNX switch/blind extension MTN6805-0008. Contents: With bus connection terminal.
Type: MTN6705-0008
