Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640
|
131,81 EUR |
|||||||||||
|
( 156,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312639 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101056640 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101056640:

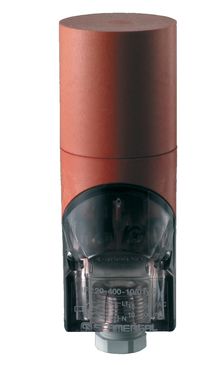

The inductive proximity switch IFL 20-400-10/01YG is a reliable device for detecting objects without direct contact. It features a robust cylindrical design with a plastic housing and an IP65 protection rating, safeguarding it against dust and water splashes. The switch operates on a voltage range of 15 to 250 VAC and offers clear status feedback through a yellow LED indicator. With a nominal switching distance of 20 mm, it is well-suited for a variety of industrial applications.
Technical Data:
Product Designation:- IFL 20-400-10/01YG
Article Number:
- 101056640
EAN:
- 4030661020594
Certifications and Standards:
- CCC
- DIN VDE 0660-208, EN IEC 60947-5-2
Housing Design:
- Cylinder, smooth
Installation Conditions:
- Non-flush
Materials:
- Housing: Plastic
- Active Surface: Plastic
- Clamping Bracket: Plastic
Gross Weight:
- 187 g
Mechanical Data:
- Nominal Switching Distance: 20 mm
- Diameter: 40 mm
- Length: 108 mm
- Width: 40 mm
- Height: 57 mm
- Connection: Screw connection PG9, max. 2 x 1.5 mm²
Electrical Data:
- Operating Voltage: 15 ... 250 VAC
- Operating Current: 10 mA - 500 mA
- Switching Element: Normally Open (NO) or Normally Closed (NC)
- Protection Circuit: Inductive protection
- Switching Frequency: approx. 10 Hz
- Voltage Drop Ud: max. 4.5 V at 0.2 A
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -25 °C to +70 °C
- Shock Resistance: 30 g / 11 ms
- Vibration Resistance: 10 ... 55 Hz, amplitude 1 mm
- Protection Class: II
Status Indicator:
- Yellow LED integrated
Scope of Delivery:
- Proximity switch including clamping bracket H 40
Note:
- Programming in the connection area by repositioning the plug.
- Additional technical details can be found in the user manual.
Type: IFL 20-400-10/01YG
Questions & answers
What is the delivery time of Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640?
The article Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101056640 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640 always at the best possible price. We can give you a discount of 2% on Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal IFL 20-400-10/01YG Ind.Näherg. switch 2L AC cylinder smooth 101056640 we can offer you a price of 129,83 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
