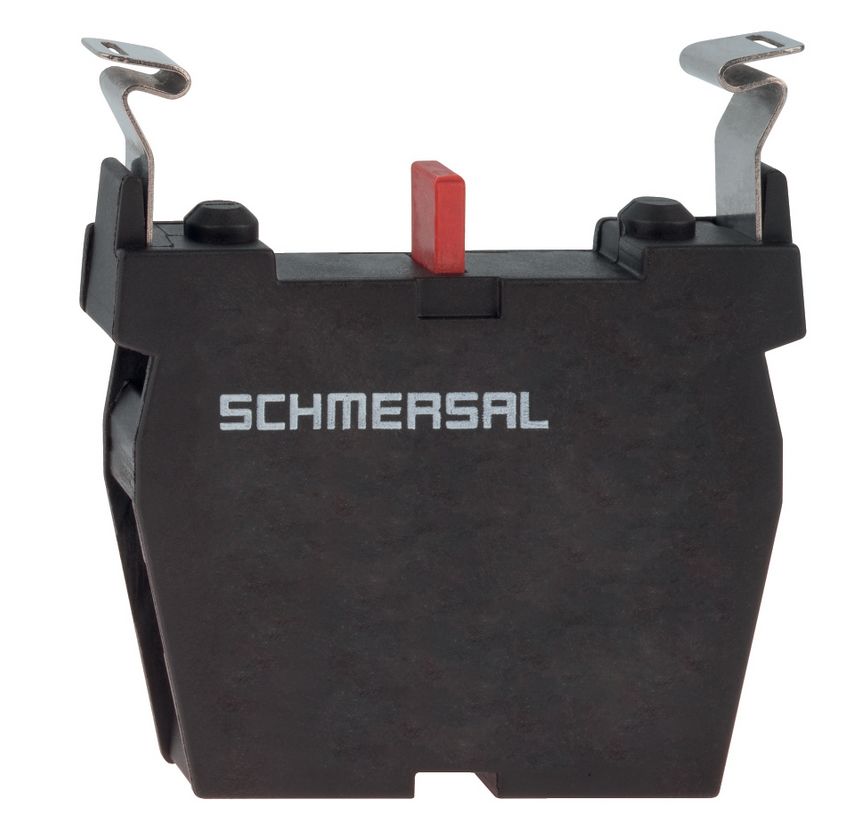

Schmersal EF220.1 contact element 2Ö screw 101023927

The EF220.1 is a high-quality contact element designed for use in industrial control and safety applications. It features a robust construction made of glass-fiber-reinforced, self-extinguishing thermoplastic and complies with EN IEC 60947-5-1 and EN IEC 60947-1 standards. With an IP40 protection rating for the switch chamber and an operating temperature range of -25 °C to +80 °C, this element is suitable for a wide range of operating conditions.

The EF220.1 is suitable for emergency stop (E-STOP) applications and is equipped with two positively opening Normally Closed (NC) contacts. The slow-action switching ensures reliable operation with a maximum bounce time of just 5 ms. The contact element achieves a high mechanical lifespan of at least 10 million operations and supports a maximum switching frequency of 1,200 cycles per hour.

The EF220.1 is easy to install using a snap-on mechanism, and the screw terminals allow for flexible wiring with cross-sections ranging from 0.5 mm² to 2.5 mm² (solid) or up to 1.5 mm² (flexible). With a rated insulation voltage of 400 V, a continuous current of 10 A, and high load capacity at AC-15 (230 VAC / 8 A) and DC-13 (24 VDC / 5 A), the EF220.1 meets demanding electrical requirements.

Note: All technical specifications include ferrules. Bounce time is based on an actuation speed of 100 mm/s.

Technical Data:

Ordering Details:

• Product Type: EF220.1
• Part Number: 101023927
• EAN: 4250116201365
• eCl@ss Number: 27-37-13-02
• ETIM Number: EC000041

Approvals:

• Certifications: cULus
• Standards: EN IEC 60947-5-1, EN IEC 60947-1

General Data:

• Type: Contact element
• Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
• Suitable for E-STOP: Yes
• Gross Weight: 23 g

Mechanical Properties:

• Mechanical Lifespan: min. 10,000,000 operations
• Positive Opening Travel: 2 mm
• Contact Opening Width: 2 mm
• Mounting Type: Snap-on
• Dimensions (LxWxD): 46 x 10 x 60 mm

Electrical Properties:

• Rated Insulation Voltage: 400 V
• Continuous Current: 10 A
• Switching Element: 2 Normally Closed (NC) contacts
• Switching Principle: Slow-action
• Bounce Time: max. 5 ms
• Load Capacity:
- AC-15: 230 VAC / 8 A
- DC-13: 24 VDC / 5 A


Environmental Conditions:

• Protection Rating (Switch Chamber): IP40
• Operating Temperature: -25 °C to +80 °C
• Shock Resistance: 110 g / 4 ms

Connection Technology:

• Connection Type: Screw terminals
• Wire Cross-Section:
- Solid: 0.5 mm² to 2.5 mm²
- Flexible: 0.5 mm² to 1.5 mm²


Contact Designation:

• 11-12
• 21-22

Type: EF220.1
