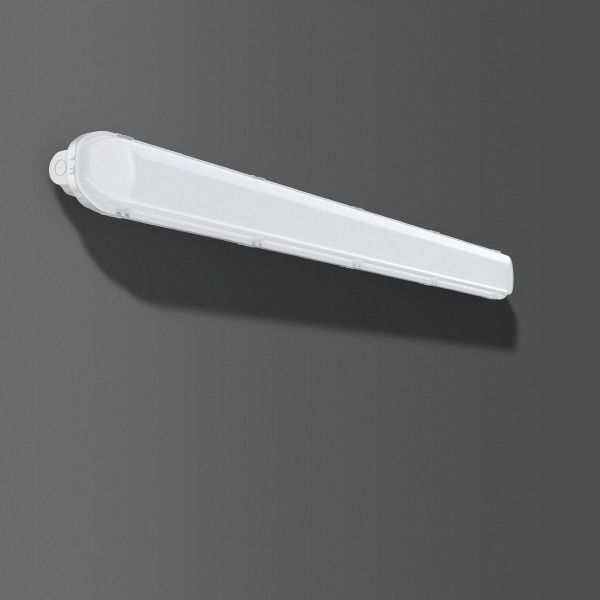

RZB 451232.009.19 PLANOX, 45 / 58 W, 6700 / 8600 lm, 840, grey, luminaire

Classic damp-proof luminaire with a two-part luminaire structure. Housing made of impact-resistant, UV-resistant plastic (polycarbonate). Injected silicone-based seal with increased resistance even under extreme conditions. Diffuser made of impact-resistant opal plastic (polycarbonate) with excellent light transmission of up to 90%. Diffuser attached using stainless steel clips for easy assembly and opening. Symmetrical light distribution. Homogeneous illumination. Flexible and easy installation using sliding quick-fixing clips made of stainless steel and diffuser with integrated device carrier and variable cable entry (front or rear). Suitable for ceiling mounting, chain or rope pendant, wall mounting. Ceiling mounting bracket made of stainless steel and triangle bracket for pendant mounting included in delivery. MultiLumen: Adjustment of the luminaire luminous flux in 2 levels. Factory-set to HO (high output). With through-wiring (2.5mm2) as standard. With integrated HF motion detector. Functional parameters of motion detector: Hold time: 5 sec. - 10 or 15 min., adjustable in 4 levels. Range: up to 8 m, adjustable in up to 4 levels. Brightness sensor: adjustable in up to 4 levels. Factory setting: Hold time 5 sec., brightness threshold deactivated, detection range 100%. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry. Suitable for lighting public parking structures and public parking spaces according to DIN 67528. Environmentally friendly and resource-saving thanks to replaceable components.
Type: 451232.009.19
