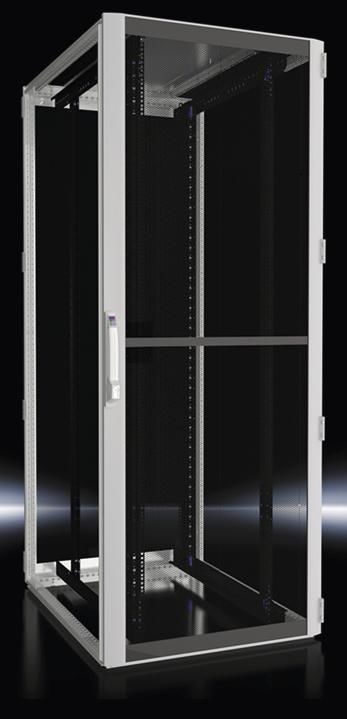

Rittal 5514110 Network/server enclosure TS IT, WHD: 800x2200x1000 mm, 47 U
|
-7% 1.928,35 EUR 2.063,34 EUR |
|||||||||||
|
( 2.294,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 669170 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 5514110 | ||||||||||
| UPC/EAN: | 4028177678163 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 5514110:
Aluminium
Surface finish: Enclosure frame: Dipcoat-primed
Interior installation: Dipcoat-primed
Doors and roof: Dipcoat-primed, powder-coated
Colour: Enclosure frame and panels: RAL 7035
Interior installation, vent grille at the front: RAL 9005
Supply includes: TS 8 enclosure frame with doors and roof plate
Aluminium sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges
Lock front and rear: Comfort handle for semi-cylinders and security lock 3524 E
Two 482.6 mm (48,3 cm ( 19 inch )) mounting sections front and rear, variably mounted on support strips with quick-release fasteners
Spacers to raise the fan cover plate, for passive cooling (supplied loose)
Connection accessories for potential equalisation with earthing point (supplied loose)
50 multi-tooth screws M5, cage nuts M5, conductive (supplied loose)
IPPC pallet
1 pc(s). Roof plate, multi-piece, removable, with side cable entry in the depth and covered cut-out for fan mounting plate
1 pc(s). Sheet steel door at the rear, vertically divided, vented (vented surface area approx. 85% perforated), 180° hinges
Note: Depending on the siting type and location, the door opening may vary for selected applications
Packs of: 1 pc(s).
EAN: 4028177678163
Customs tariff number: 94032080
eCl@ss 5.1: 27180201
eCl@ss 7.0: 27180207
ETIM 6.0: EC002499
Dimensions: Width: 800 mm
Height: 2200 mm
Depth: 1000 mm
Installation height for components: 47 U
Distance between levels as delivered: 745 mm
Load capacity: 482.6 mm (48,3 cm ( 19 inch )) level: 15000 N
Weight/pack: 101 kg
Type: DK 5514.110
