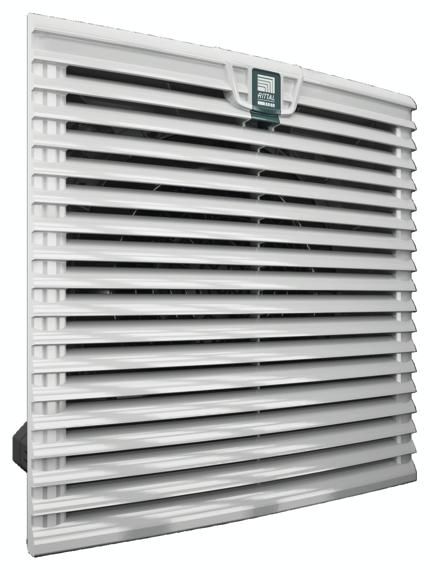

Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm
|
78,00 EUR |
|||||||||||
|
( 92,82 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| End-Of-Life: | 21. Aug 2025 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 718066 | ||||||||||
| Mfg Part No: | 3237124 | ||||||||||
| UPC/EAN: | 4028177651609 | ||||||||||
| Weight: | 0.3 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3237124:
Protection category IP to IEC 60 529: IP 54
NEMA 12
With hose-proof hood: IP 54
With hose-proof hood: NEMA 3
With hose-proof hood: NEMA 3R
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fan-and-filter units, we recommend using the enclosure internal thermostat, the speed control or the digital enclosure internal temperature display and thermostat
Packs of: 1 pc(s).
EAN: 4028177651609
Customs tariff number: 84145100
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): With DC: 20 m³/h
Air throughput with outlet filter including standard filter mat: Number of outlet filters: 1
Model No. of outlet filter: SK 3237.200
With DC: 15 m³/h
Rated operating voltage: 24 V (DC)
Dimensions: Width: 116.5 mm
Height: 116.5 mm
Required mounting cut-out: Width: 92 mm
Height: 92 mm
Build depth: 16 mm
Installation depth: 43 mm
Temperature range: Bearing: -30°C...+70°C
Operation (environment): -15°C...+55°C
Power consumption Pel: With DC: 3 W
Rated current (max.): With DC: 0.12 A
Pre-fuse: Miniature circuit-breaker/fuse: 2 A
Noise level: With DC: 38 dB(A)
Diagonal fan: Axial, DC motor
Weight/pack: 0.3 kg
Type: SK 3237.124
Questions & answers
What is the delivery time of Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm?
The article Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3237124 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm always at the best possible price. We can give you a discount of 2% on Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Rittal 3237124 SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm we can offer you a price of 76,83 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
