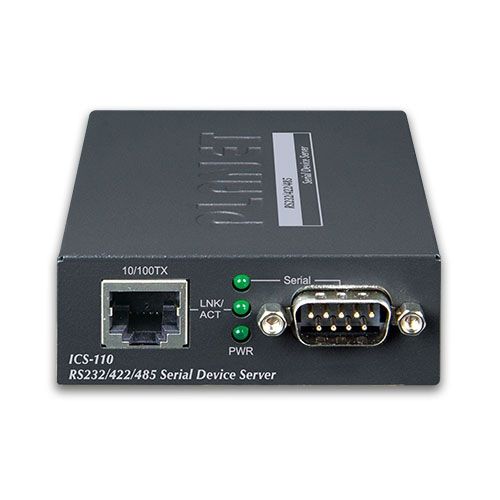

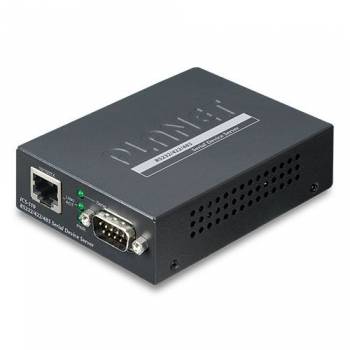

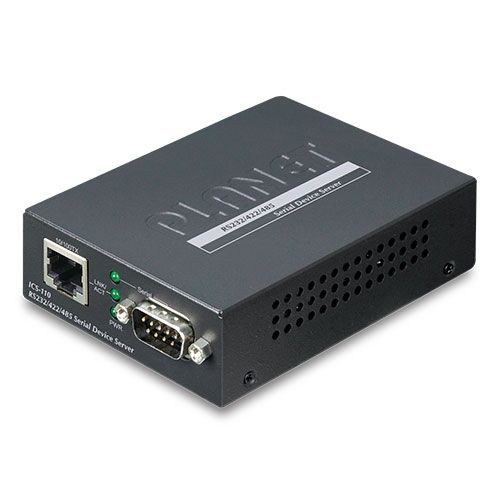

PLANET 1-Port RS232/422/485 to 1-Port FE Ethernet Converter
|
86,07 EUR |
|
|
( 102,42 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 276413 |
|---|---|
| Mfg Part No: | ICS-110 |
| UPC/EAN: | 4711605285001 |
| Weight: | 0.46 kg |
Product information for Planet ICS-110:
Ideal for industrial environments, the ICS-110 offers flexible mounting options, IPv6 support, multiple protocol modes, and compatibility with PLANET’s media chassis. Its compact size and web-based management make deployment simple and scalable.
Technical Specifications (EN):
Serial Interface:
- 1x DB9 male (RS232/RS422/RS485 2-wire/4-wire)
- Baud Rate: 50 to 921600 bps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Odd, Even, Space, Mark
- Flow Control: RTS/CTS, DTR/DSR (RS232 only), XON/XOFF
- Operating Modes: VCOM, RFC2217, TCP Server/Client, UDP, Remote Pair, Telnet, Modbus Converter
Ethernet Interface:
- 1x 10/100BASE-TX RJ45 (auto MDI/MDI-X)
- Distance: up to 100m
- ESD Protection: 6KV
Management & Security:
- Web & Telnet console, Windows VCOM Utility
- PLANET Smart Discovery, SNMP v1/v2c, SNMP Trap
- Accessible IP security whitelist
- Syslog & SNMP trap event alerts
- IPv4 and IPv6 dual stack
- DHCP client, NTP, HTTP, Telnet, ICMP, DHCPv6
- Remote firmware upgrade via HTTP
- Compatible with PLANET UNI-NMS

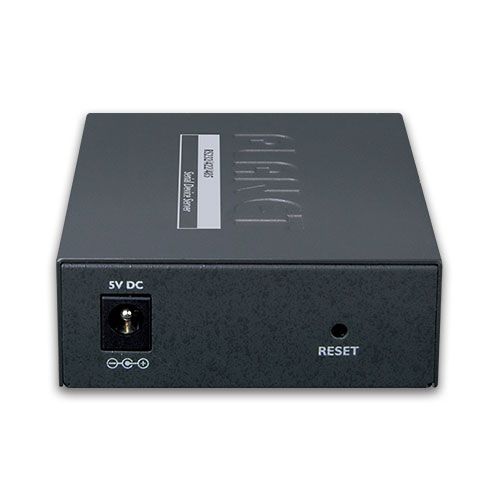

Housing & Installation:
- Dimensions: 94 × 70.3 × 26.2 mm
- Weight: 184 g
- Enclosure: Metal, IP30
- Mounting: Wall-mount, DIN-rail, or PLANET chassis (MC-700/1500)
- Reset Button: Reboot (<5s) or Factory Reset (>5s)
- Power Input: 5V DC, 2A max
- Power Consumption: max. 5.5W
- Operating Temp: -10 to 60 °C
- Humidity: 5–95% (non-condensing)
