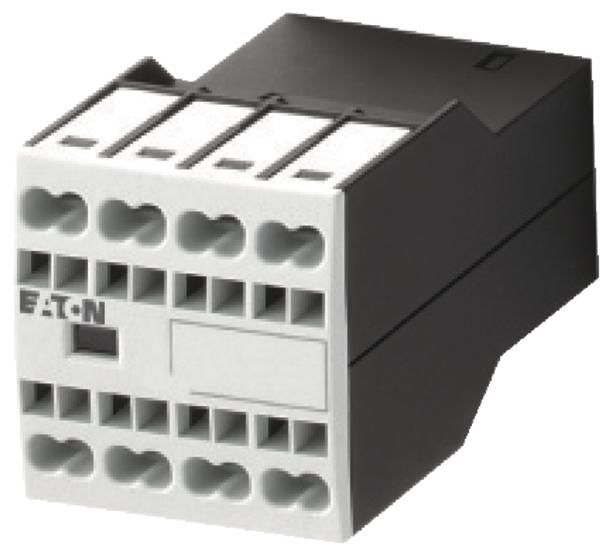

Moeller 276530 EATON auxiliary contact DILA-XHIC04 4Ö, building Balancer

Auxiliary switch module, with positively guided contacts, switching elements according to EN 50005, combinations of version E correspond to EN 50011 and are to be preferred., DC operated contactors DILA(C)-22 may only be combined with 2-pole auxiliary switches., Function: for standard applications, 4-pole, Connection technology: spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts Ö = normally closed: 4 Ö, Mounting type: front mounting, can be used for: DILA(C)., DILM(C)7., DILM(C)9., DILM(C)12., DILM(C)15., DILM(C)17., DILM(C)25., DILM(C)32., DILM38., DILMP20., DILMP32., DILMP45., DILL., DILMF8., DILMF11., DILMF14., DILMF17., DILMF25., DILMF32., Design: Surface-mounted auxiliary switch, Notes: Positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules and to the integrated auxiliary switches of the DILM 7 - DILM32, Auxiliary break contact can be used as a mirror contact in accordance with IEC/EN 60947-4-1 Appendix F (not late break contact), Identification number/design of the combinations Identification number: 44E, 35, 26
Type: DILA-XHIC04

The item price shown refers to 5 pieces Moeller 276530
