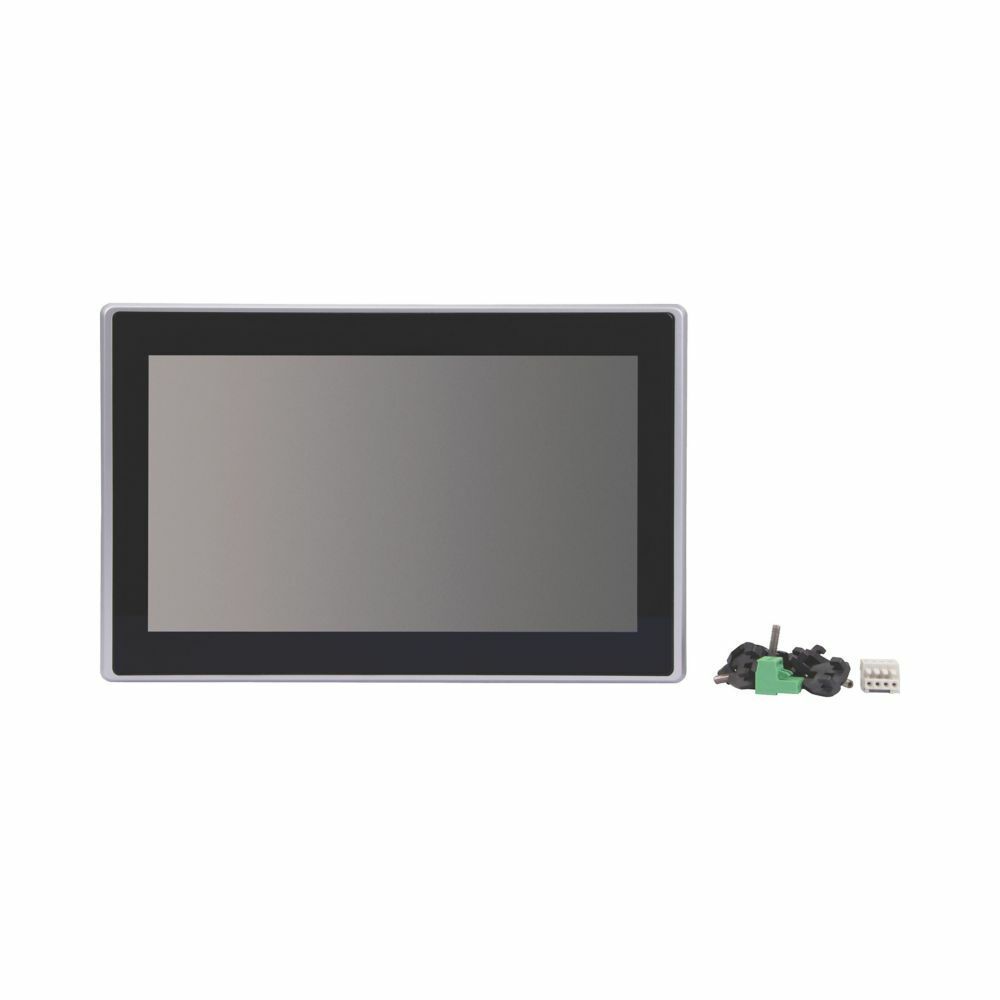

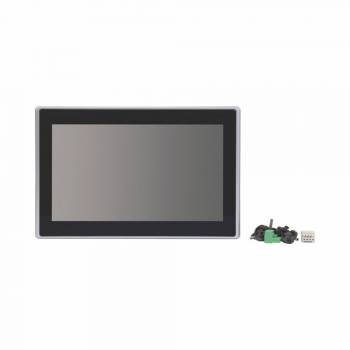

Moeller 179667 EATON XV-303-10-BE0-A00-1C control panel with PLC as SWD coordinator,

SWD multi-touch display with PLC, XV-303, range: XV300 10.1', sub-range: SmartWire-DT touch display with integrated control (HMI-PLC), function: SmartWire-DT coordinator, description: Multi-touch display of the XV300 series with PLC function for front installation, operating panel with PLC as SWD coordinator, common features of the series: Ethernet interface, CAN, USB device, USB host, RS232, RS485, slot for SD card, operating system Windows Embedded Compact 7 pro, visualization software Runtime license integrated, display type: color display, TFT, anti-glare, touch technology: capacitive multi-touch (PCT), number of colors: 16777216 (color depth 24 bit), resolution: WSVGA, 1024 x 600 pixels, portrait projection: yes, screen diagonal: 10.1, widescreen inch, plastic housing and glass front in a plastic frame, operating system: Windows Embedded Compact 7 Pro, PLC license: PLC license included, license certificates for onboard interfaces: not required, integrated interfaces: 1 x Ethernet 10/100 Mbps, 1 x RS232, 1 x RS485, 1 x USB host 2.0, 1 x USB device, 1 x CANopen®/easyNet, 1 x SmartWire-DT, front design: hardened, anti-reflective glass in a plastic frame, use: installation, slots: for SD card: 1, memory card automation: optionally with SD card -> item no. 181638, Pluggable communication modules (optional): no, Touch sensor: Multifinger touchscreen, Power loss: 18 W, Connection to SmartWire-DT: yes, Protection class (IEC/EN 60529, EN50178, VBG 4): IP65 (front according to EN 60529-1), IP65 (rear according to EN 60529-1), NEMA 4X, NEMA12 (according to NEMA 250-2003)
Type: XV-303-10-BE0-A00-1C
