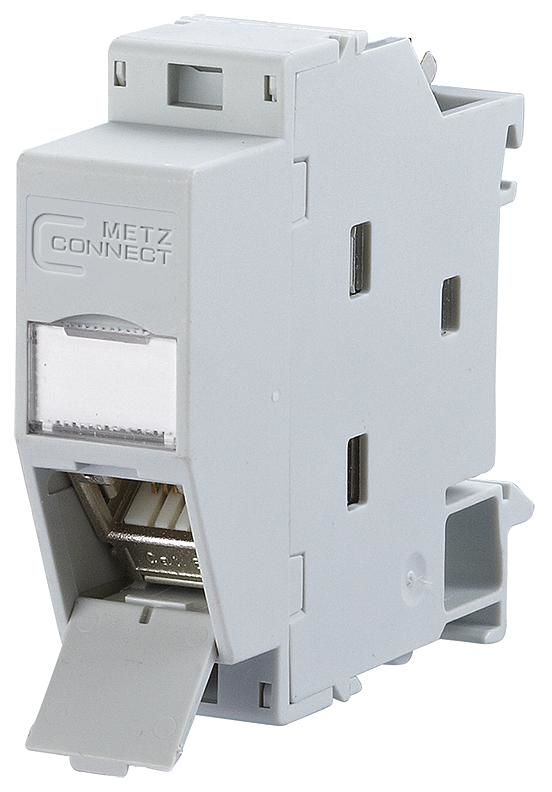

Metz Connect 130B117003-E BTR REGplus C6Amodul IP20 180 °,

Connection unit for mounting on a TH35 mounting rail in accordance with DIN EN 60715 in electrical distributors for domestic and industrial installations, equipped with a C6, Amodule 180° RJ45 single moduleCable access 45° from above, plug direction 45° inclined downwards, GHMT Cat.6, A re-embedded PVP certifiedCat.6, A component testing in accordance with ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedCompliance with Class E, A up to 500 MHz in accordance with ISO/IEC 11801, DIN EN 50173-1tested: component up to 600 MHz, link up to 800 MHz, for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, marking of the wire assignment T568A and T568B directly on the charging unit, migration to 25G systems without the need for special tools, the width of 1TE enables the installation of up to 12 REGplus in standard electrical distribution boards, when installed as a device of protection class I, the potential equalization takes place via an integrated potential equalization plate directly on the mounting rail, which is to be connected to the building potential equalization via appropriate contact terminals, the module is protected against direct contact by a cover. When installed in protectively insulated distribution boards, protection class II is therefore maintained. For this, the potential equalization spring must be removed. Integrated dust protection flap (also available in color)
