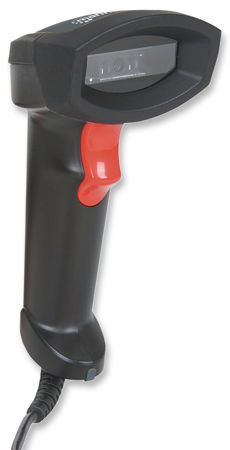

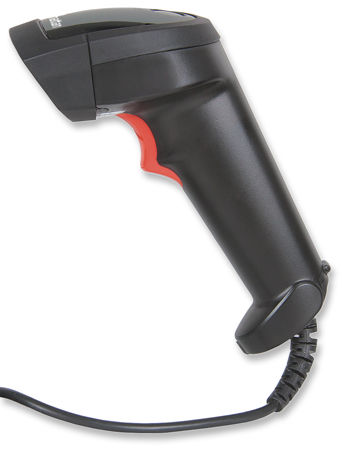

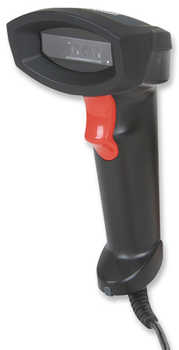

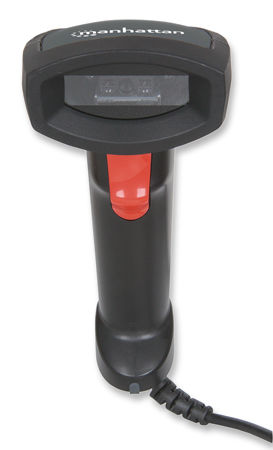

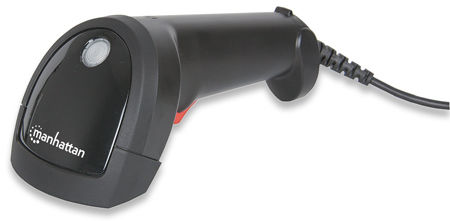

MANHATTAN 178433 CCD barcode scanners for industrial applications 500 mm scan range, robust housing, USB

Higher speed, accuracy and productivity in particularly robust housing

Manhattan CCD Barcode Scanner allows high-quality scanning for a wide range of applications and increase productivity in your business. The CCD sensor scans quickly and reliably, with high tolerance, many popular symbologies including UPC, EAN, GS1 DataBar and ASCII. Scanned data appears on the PC, as it were entered manually via a keyboard. Without external power supply and connectivity with USB scanner allows comfortable use on your PC without additional software or special training. With a rate of 500 scans per second and a range up to 500 mm, this device is ideal for everyday use in stores, warehouses or offices. By shockproof and protection class IP54 sealed housing, this scanner also particularly suitable for industrial environments. - Increases speed data entry, reduce errors and increase efficiency - ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if they were directly entered from the keyboard
- The wide scan area allows up to 500 scans per second at a range of up to 500 mm
- Detects many popular symbologies including UPC, EAN, 1D bar codes, ASCII, GS1 DataBar group and many more.
- Plug & Play via USB port, other interfaces optional
- Easy to install and use without software or special training
- 3 years Warranty Standards and Certifications:
- FCC
- CE
- RoHS

General:

- Light source: red LED, 632 nm
- Scan range: 500 mm
- Resolution: 0.1 mm @ PCS 0.9
- Read reply: beep and LED
- Light: up to 100,000 lux (sunlight)
- Scan rate: Smart Detection, up to 500 scans / second
- Interface: KBW / RS232 / USB (HID or Virtual Comport)
- Button: Shutter

Supported barcodes:

- UPC / EAN / JA
N, EAN 128 code, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacy, Code 128, Codabar / MW7, Interleave 25, Industrial 25, Matrix25, MSI / PLESSEY, Telepan, Code 93, Code 11 , China Postage, Code26, LCD25, GS1 DataBar (RSS code)

Dimensions and weight
- Dimensions: 18 x 7 x 7 cm
- Weight 0.15 kg
- Operating temperature: 0 - 50 ° C
- Storage temperature: -20 - 60 ° C
- Humidity: 20-95% (non-condensing)
- Housing: ABS plastic and rubber
- Sealing according to IP54

Electrical Specifications:

- Voltage: DC +5 V +/- 5%
- Power consumption: 70 mA

Scope of delivery
- CCD Barcode Scanner for Industrial Applications
- Manual Color: Black Product Dimensions: 18 x 7 x 7 cm
