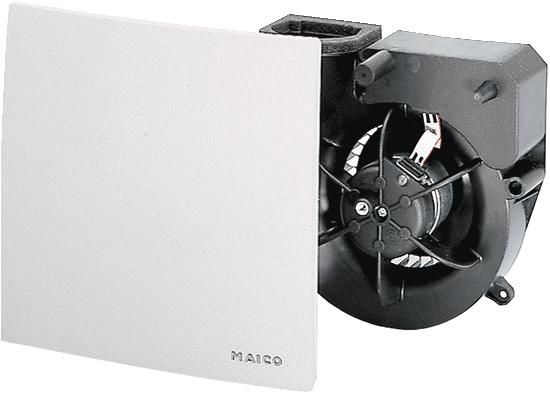

Version with delay timer with 15 minute run-on: Switch-on delay approx. 50 sec. Run-on time approx. 15 min. Speed cannot be controlled. Fan with cover and ISO Coarse 30% (G2) filter for installation in flush-mounted housing ER-UP/G, ER-UPD and ER-UPB.... For one-room or two-room ventilation with a single fan (exception: version H). Easy filter change without tools. Cover can be rotated by +- 5°, allowing compensation if the housing is installed at an angle. Simple and quick installation of the fan in the housing using the snap-on fastening and the electrical plug connection. Color traffic white, similar to RAL 9016. All MAICO ER devices correspond to protection class IP X5 and can therefore be installed in area 1 according to DIN VDE 0100-701, even with water jets. See planning information for details. Protection class II. The extremely steep characteristic curve shows the high pressure capacity of the ER fans. Robust energy-saving capacitor motor. Motor with thermal overload protection. Maintenance-free, with ball bearings closed on both sides. Volume flow characteristic curve and leakage air rate tested by TÜV Bayern eV. Leakage air volume flow < 0.01 m3/h. Shaft level difference in accordance with DIN 52210-6, tested by IAB Oberursel. With VDE mark.Article: ER 100 VZ 15, Design: Delay timer 15 minutes run-on time, Delivery volume: 101 m3/h, Speed: 1900 1/min, Air direction: Ventilation, Speed controllable: no, SEC average: -6.5 kWh/(m2*a), Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Power consumption: 29.5 W, IMax: 0.14 A, Protection class: IP X5, Mains cable: 5 / 1.5 mm2, Installation location: Wall / ceiling, Installation type: Flush-mounted, System type: decentralized, Material: Plastic, Color: traffic white, similar to RAL 9016, Weight: 1.47 kg, Weight with packaging: 1.75 kg, Filter class: ISO Coarse 30% (G2), Blow-out direction: side, Width: 250 mm, Height: 250 mm, depth: 150 mm, width with packaging: 280 mm, height with packaging: 280 mm, depth with packaging: 155 mm, conveying medium temperature at IMax: 40 °C, run-on time: 15 min, switch-on delay: 50 s, sound pressure level: 45 dB(A) / specification according to DIN 18017-3 with an equivalent absorption area AL = 10 m2, nominal width: 75 mm / 80 mm
Type: ER 100 VZ 15
Questions & answers
What is the delivery time of Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min ?
The article Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0084.0140 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min always at the best possible price. We can give you a discount of 2% on
Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min we can offer you a price of 342,25 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
