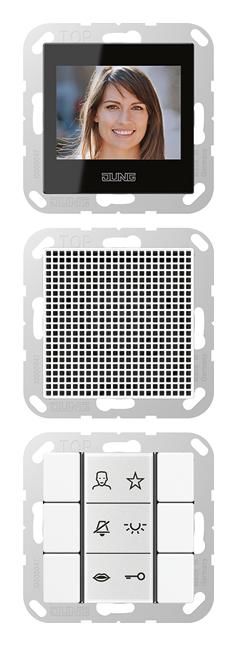

JUNG SIVIA622WW video indoor station

for the AS and A series
including button set and labeling foil
without frame
The modules of the indoor station can be combined with multiple frames (horizontal or vertical). Remote installation in separate frames and installation in surface-mounted caps is possible.
An additional power supply is required to operate the video indoor station. Recommendation: NG 706-30/33-0 from Siedle (see Siedle planning manual).
Product features
TFT color monitor
Screen diagonal 55 mm (2.2??)
320 x 240 pixels
Adjustment for brightness and color
Includes video connection cable (black, 220 mm)
Calling, speaking, seeing, door opening, light, floor call, switching/control functions and internal communication Reverse polarity
protected 2-wire installation, 2-pole additional power supply required (JY(St)Y 2 x 2 x 0.8)
Automatic video connection when door call is made
Talk button with green status LED
Light, call shutdown, monitor and function buttons freely configurable. Button functions can be activated without additional installation, e.g. for internal telephony, activation of switching/control functions in conjunction with Siedle bus switching module BSM/BSE 650-.., targeted selection of door loudspeakers (outdoor stations)/cameras.
A switching function (in conjunction with Siedle bus switching module BSM/BSE 650-..) can be configured on the door release button via BPS.
Integrated listening and viewing lock
Parallel connection (simultaneous calling) of max. 16 video indoor stations (from the 3rd device onwards, the Siedle BPS is required for programming).
Speech/video connection possible at any time, even without a door call
High-quality sound and great speaker dynamics
Electret condenser microphone
Connection for Siedle In-Home bus
Connection for storey call button
Call generator with 11 ringtone melodies, including gong
Ringtone volume adjustable in 5 levels up to 92 dB(A)
Speech volume adjustable in 5 levels
Programming Manually, plug+play and via Siedle bus programming software (BPS), according to Siedle system manual
Indoor station with hands-free operation
Status display when speech connection is active
Call deactivation with status display
Call differentiation for storey calls, 2 door calls and internal calls
Door opener/light function at any time via bus line
Door call acceptance
Group formation for door calls. Each indoor station can belong to up to 4 groups on the same line
Intercom functions: - Call forwarding - Internal group call - Collective announcement - Automatic call acceptance for internal calls - Doormatic
5 LEDs for display (e.g. door open) without additional wiring
Display of operational readiness via an LED
Optical call display by flashing LED on the talk button
Illuminated label field
Including label foils with symbols for audio and video
Including audio connection cable (red, 220 mm)
Connection for additional power supply (required for operating a video module, lighting the label field in the universal touch module and when connecting a second touch module.)
Connection for another touch module (standard or universal, max. 2 touch modules per indoor station)
