Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm
|
921,46 EUR |
|||||||||||
|
( 1.096,54 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| End-Of-Life: | 21. Aug 2025 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 797815 | ||||||||||
| Mfg Part No: | MBT2424 | ||||||||||
| UPC/EAN: | 4011377054295 | ||||||||||
| Weight: | 1.31 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

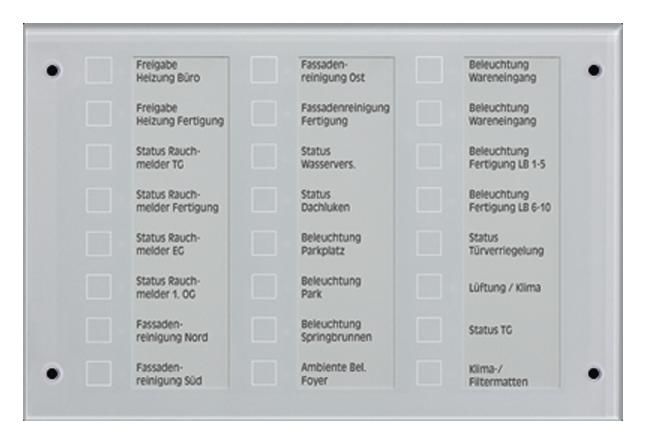

Product information for Jung MBT2424:
Product type Signaling and control panel
The panel with aluminum housing and high-quality glass front has 24 independent capacitive sensor buttons and 24 RGB LEDs for status display, which can be labeled using foil strips.
In addition to the switching/button, dimming, blind and scene functions, value transmitter functions are also possible. The separately parameterizable LEDs can light up red, green or blue and thus, for example, signal different states of the KNX system depending on the limit value. A lock function can be used to lock specific buttons, columns or the entire panel. Acoustic signals when buttons are pressed and for alarms can be parameterized. The MBT 2424 is installed in a 2-way flush-mounted device box or in the surface-mounted installation housing and can be completely configured in the ETS. A drilling template is available for installation. The assigned functions are marked using exchangeable labeling strips. Printing is done using the JUNG labeling tool. The front glass panel is attached with four 2-hole M3 screws. The bit required for installation is included in the scope of delivery.
Product features
Touch sensor functions Switching, dimming, blind control, value transmitter, scene call, etc.
High-quality glass surface with 24 sensor surfaces
Operation by touching the sensor surfaces
Labeling with slide-in strips
Status display with 24 LEDs, color red, green or blue, can be parameterized
Acoustic signal display, e.g. for pressing a button
Fault message when dismantling
Logic and time functions
Integrated bus coupling unit
Supply via separate power supply (item no. NT 2405 VDC) or the auxiliary voltage output of the KNX power supply
Type: MBT 2424
Questions & answers
What is the delivery time of Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm?
The article Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Jung MBT2424 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm always at the best possible price. We can give you a discount of 2% on Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Jung MBT2424 KNX Control and Display Tableau, 24VAC/DC 2.2 W 236x156x14mm we can offer you a price of 893,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
