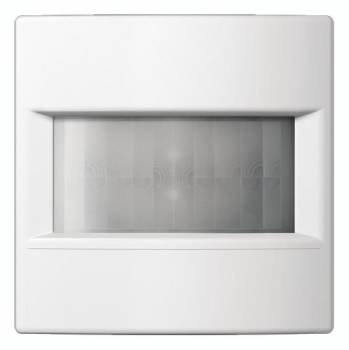

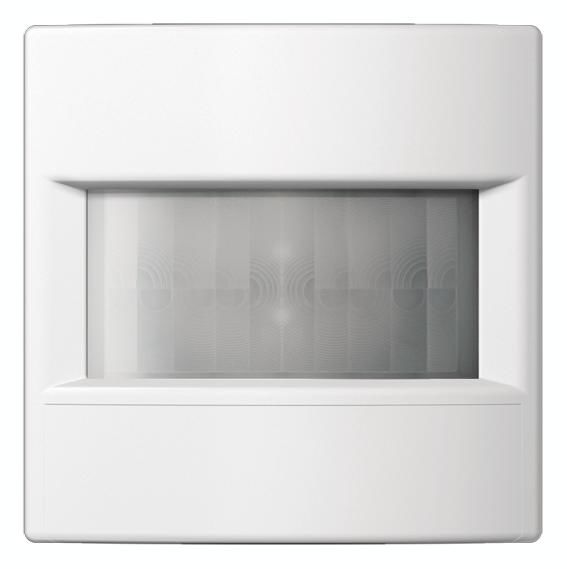

Jung LS17181WW automatic switch 1.1m UNI

for LB Management inserts 'Light' Item no.: 1701 SE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with flush-mounted insert for switching or dimming or 3-wire extension from the LB Management
Wall mounting on flush-mounted insert
Product features
Functions directly on the attachment
Extension of the detection area in combination with 3-wire extension
Permanently on, permanently off
Operation with 2- or 3-wire extension, rotary extension or button
Dimming insert can be dimmed via extension
Reset to factory settings
Cover to restrict the detection area
Functions via Clever Config app
Adjustable brightness threshold
Setting the sensitivity of the PIR sensors
Adjustable run-on time
On or off for 0.5 - 5 hours
switch-off warning
Dynamic run-on time Presence
simulation
Alarm function
Time switch function
Operation lock
Reduced basic sensitivity
Automatic summer/winter time changeover
Test operation
Programming of up to 16 individual switching times
In combination with a switch insert
Short-term operation
In combination with a dimmer insert
Switching on with last set brightness or saved switch-on brightness
Setting the minimum brightness
Setting the maximum brightness
Hotel function
Night light function
Ambient temperature: ?20 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Brightness setting: approx. 5 ... 500 lx (and daytime operation)
Sensitivity: 0, 25, 50, 75, 100 %
Run-on time: approx. 10 s ... 60 min
Installation height: 1.10 m
Detection angle: 180°
Detection range
Sensitivity 25 %: max. 8 m
Sensitivity 50 %: max. 13 m
Sensitivity 75 %: max. 26 m
Sensitivity 100%: max. 32 m
Radio frequency: 2.402 ... 2.480 GHz
Transmission power: max. 2.5 mW (Class 2)
Transmission range: typically 10 m
Dimensions (W x H): 70 x 70 mm
Type: LS17181WW
