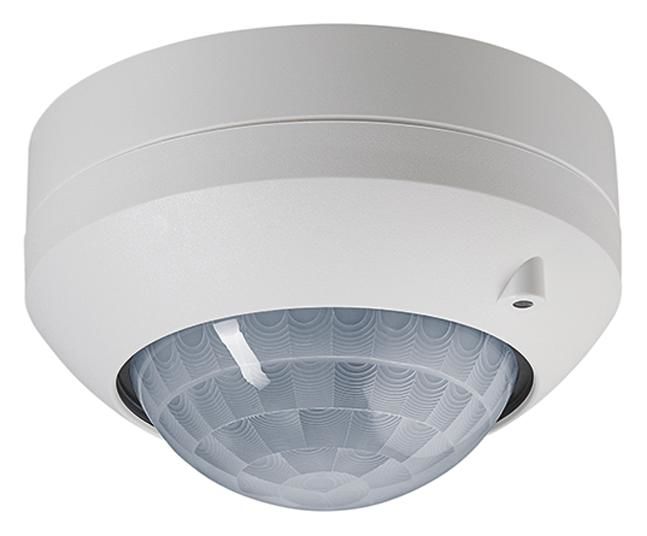

Jung DWPMK360WW ceiling monitor/presence detector 360° alpine white
|
227,71 EUR |
|||||||||||
|
( 270,97 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1441407 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | DWPMK360WW | ||||||||||
| UPC/EAN: | 4011377146570 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG DWPMK360WW:
including IR remote control Item no.: DWPM FB IR K
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Ceiling mounting, surface-mounted in dry indoor areas
Product features
2-point light control
Functions adjustable with IR remote control
Restriction of the detection field by switching off individual sensors or clip-on cover
Operation with IR remote control, 2-wire extension or installation button
Teach function for adjusting the brightness threshold, in combination with IR remote control
Switch-off warning
Short-term operation e.g. for controlling acoustic signaling devices
Display LEDs
Presence simulation
Function as a twilight switch
Dynamic follow-up time
Extension of the detection area by connecting several devices in parallel
Nominal voltage: AC 110 ... 230 V ~
Mains frequency: 50/60 Hz
Ambient temperature: ?5 ... +45 °C
Standby power: max. 0.3 W
Circuit breaker: max. 16 A
Contact type: µ
Detection angle: 360°
Dimensions (Ø x H): 103 x 66 mm
Installation height: 3.00 m
Detection range: Ø approx. 20 m
Sensitivity: 25 ... 100 %
Brightness setting: approx. 5 ... 2,000 lx (and daytime operation)
Follow-up time: approx. 10 s ... 30 min
Short-term operation
Pulse duration: approx. 0.5 s
Pulse pause: approx. 3 s
Switching current at 35 °C
Ohmic: 16 A (AC1)
Fluorescent lamps: 4 AX
Connected load at AC 230 V ~ and 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 400 W
Compact fluorescent lamps: typically 400 W
Fluorescent lamps uncompensated: 920 VA
Capacitive load: 690 VA (560 µF)
Connected load at AC 110 V ~ and 35 °C
Incandescent lamps: 1150 W
HV halogen lamps: 1000 W
Electronic transformers: 750 W
Inductive transformers: 500 VA
HV LED lamps: typically 200 W
Compact fluorescent lamps: typically 200 W
Fluorescent lamps uncompensated: 460 VA
Capacitive load: 345 VA (560 µF)
Connection
Single-wire: 1 x 1 ... 2.5 mm2
Fine-wire with tinned conductor ends: 1 x 0.75 ... 1.5 mm2
Number of extensions
with unlit installation buttons: unlimited
2-wire extension: unlimited
Total length of extension cable: max. 100 m
Total length of load cable: max. 100 m
IR remote control
battery type: 1 x Lithium CR 2025 (included)
Type: DWPMK360WW
