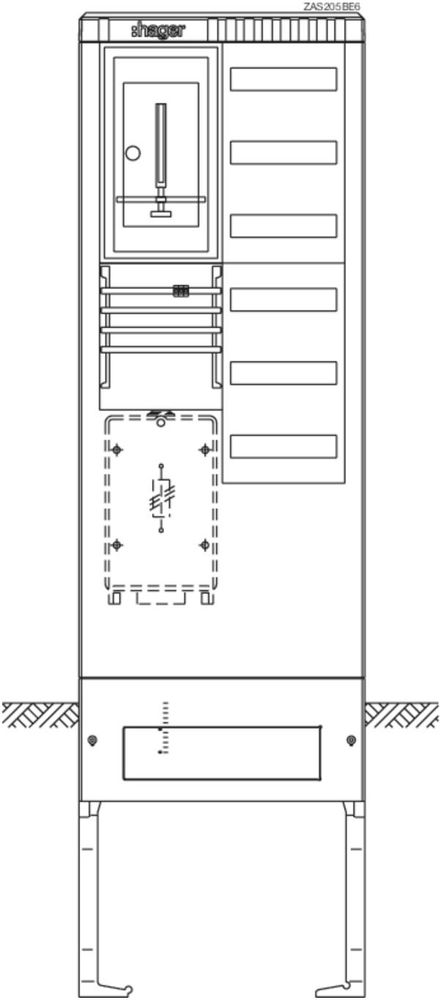

Hager ZAS205BE6 meter connection column 1ZP +1V6R 2-field
|
3.594,39 EUR |
|
|
( 4.277,32 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 119931 |
|---|---|
| Mfg Part No: | ZAS205BE6 |
| UPC/EAN: | 3250611071501 |
| Weight: | 0.12 kg |
Product information for HAGER ZAS205BE6:
Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when housings are connected in series. Right door can be removed. Locking with swivel lever and three-point bascule lock with 1 or 2 profile half cylinders. Built-in cylinder at the bottom with a same-key series. A second locking cylinder (e.g. from VNB locking system) can be installed at the top after removing the square lock. If no second profile half-cylinder is installed, the second upper opening must be fitted with a blind plug.
Ventilation takes place via labyrinth-like ventilation ducts and is protected from penetration by foreign bodies. Meter connection columns are built in accordance with technical guidelines (outdoor connection cabinets/connection of stationary switch and control cabinets and meter connection columns to the low-voltage network of the VNB).
The installation consists of protectively insulated meter fields DIN 43870 (functional areas) for meters and tariff switching devices (TSG). TSG spaces can be retrofitted with an IP 44 cover. Depending on the design, empty spaces are provided as retrofit fields. The buried base and meter connection column form a unit. A floor grate is recommended. To prevent condensation, the base must be filled with base filler on the inside up to the height of the cable fastening rail.
Type: ZAS205BE6
