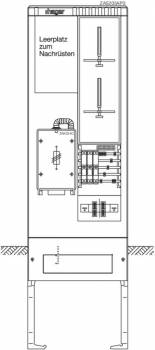

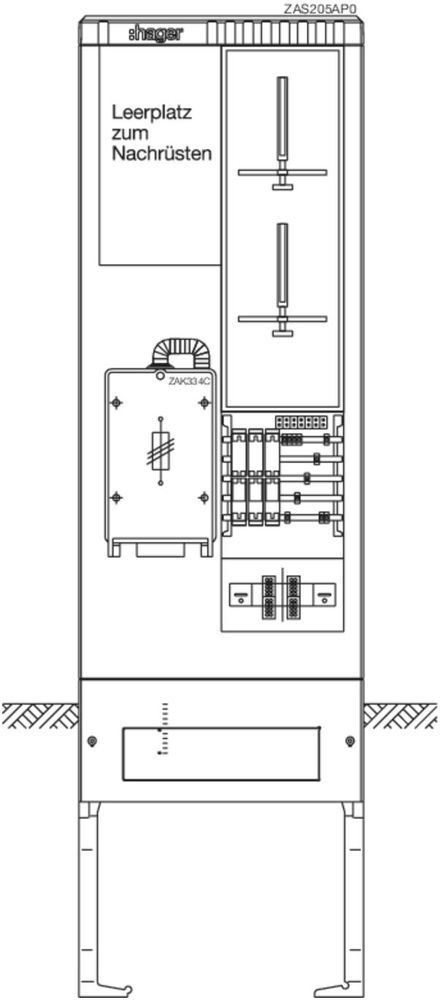

Hager ZAS205AP0 meter connection column KWG/OVAG/Stand. 2ZP+1LP HAK TSG/V

Meter connection column 205, universN, 1 ZP, 3-point, 5-pole, empty space, HAK. Equipped meter connection column in accordance with DIN EN 61439, protection class IP 44, with buried base, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598. Meter connection column is equipped in accordance with the current technical connection conditions of the respective energy supplier and covers the respective TAB requirements. Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when housings are connected in series. Right door can be removed. Locking with swivel lever and three-point bascule lock with 1 or 2 profile half cylinders. Built-in cylinder at the bottom with a same-key series. A second locking cylinder (e.g. from VNB locking system) can be installed at the top after removing the square lock. If no second profile half-cylinder is installed, the second upper opening must be fitted with a blind plug. Ventilation takes place via labyrinth-like ventilation ducts and is protected from penetration by foreign bodies. Meter connection columns are built in accordance with the technical guideline for outdoor connection cabinets/connection of stationary switch and control cabinets and meter connection columns to the low-voltage network of the VNB. The installation consists of protectively insulated meter fields DIN 43870 (functional areas) for meters and tariff switching devices (TSG). Meter spaces or TSG spaces are prepared with an IP 44 cover. Depending on the design, empty spaces are provided as retrofit fields. The buried base and meter connection column form a unit. A floor grate is recommended. To prevent condensation, the base must be filled with base filler on the inside up to the height of the cable fastening rail.
Type: ZAS205AP0
