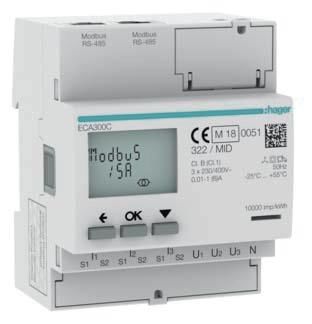

3-phase energy meter for transformer ratio 1A or 5A, 4M, AGARDIO, MID. Energy meter for 4-quadrant measurement with the following accuracy classes: Active energy Class B according to DIN EN 50470-3, active power Class 1 according to IEC 62053-21, active power Class 1 according to IEC 61557-12 and reactive power Class 2 according to IEC 62053-23. The bidirectional meter is MID certified at the factory (a sealing set is included in the scope of delivery) and contains a resettable partial meter. Suitable for measuring energy consumption and energy supply in all network systems. Up to 8 tariff counts possible (2 tariff counts via 230 V AC and Modbus, an additional 6 tariff counts can be controlled via Modbus). Digital display with lighting to show active energy (kWh) and reactive energy (kvarh) consumed and supplied for all tariffs. In addition, the real-time measured values for active power (kW), reactive power (kvar), apparent power (kVA), voltage (V), current (A), power factor, frequency (Hz) and tariff are displayed for each outer conductor with a resolution of up to 9 digits including two decimal places. In addition to the previously mentioned measured values, the current total measured values of active power (kW), reactive power (kvar) and apparent power (kVA) as well as the power factor can be accessed via Modbus. In addition, the values of the partial counter for active energy for each tariff can be reset individually via Modbus. All measured values and energy values for tariff 1 and tariff 2 can also be output via an IR interface. Wiring errors and connection errors are displayed and the measured data is saved periodically. RJ45 plug-in technology enables error-free daisy chain installation.
Type: ECA300C
Questions & answers
What is the delivery time of Hager ECA300C energy meter 3-phase for converter ratio 1A without 5A 4M?
The article Hager ECA300C energy meter 3-phase for converter ratio 1A without 5A 4M is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of HAGER ECA300C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ECA300C energy meter 3-phase for converter ratio 1A without 5A 4M always at the best possible price. We can give you a discount of 2% on
Hager ECA300C energy meter 3-phase for converter ratio 1A without 5A 4M if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Hager ECA300C energy meter 3-phase for converter ratio 1A without 5A 4M via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
