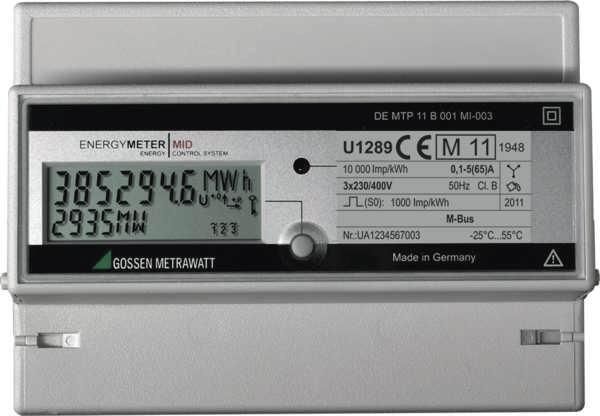

Gossen U1289-V014 U1289 energy meter MID kWh 4-L, 5 (65) A M-Bus

Active energy meter with MID approval, calibrated for 4-wire, 400 V and 5(65) A direct connection. The calibrated energy meters can be used to record and bill active energy in industry, households, commerce and building technology. The values are transmitted to recording, billing and optimization systems as well as building automation and control technology via pulse output, LON, M-Bus or L-Bus interfaces. The installation itself is extremely simple because the meter detects connection errors and signals them immediately. The display of the active power offers maximum convenience because it provides immediate information about the current circuit load. If you want to find out more about your network, simply expand the functionality. Professional energy meter for 4-wire networks with 65 A direct connectionAccuracy class B for industry and commerce as well as increased requirements in householdsCost savings through initial calibration ex works, according to MID, conformity assessment procedure module B+DCalibration also with adjustable transformer ratiosConfigurable multifunctional versions for recording reactive energy and network measured variablesDisplay of installation errors: rotating field direction, phase failure, reversed polarity transformers, overloadUniversal pulse output with adjustable pulse rate, pulse duration and selectable voltage rangeFlexible communication via integrated LON, M-Bus or L-Bus interfaceFull function possible with the circuit switched off via fail-safe 24V auxiliary voltageSealable cover, parameter lock3 year guaranteeMade in Germany. Multifunctional design - additional parameters Depending on the type of multifunctional design, the meter can also record reactive energy and display up to 26 other measured variables. This means that the voltage level, the utilization of individual phases, the reactive power share and the function of compensation systems can be evaluated at any time by simply pressing a button and without additional measuring equipment. Versatile initial calibration ex worksThe meters comply with the MID directive that is valid throughout Europe and in Switzerland and are delivered with initial calibration ex works. They can be used immediately for billing purposes. This reduces delivery times and costs. The conformity assessment is carried out according to Module B + D, the declaration of conformity is included in the operating instructions.
Type: U1289
