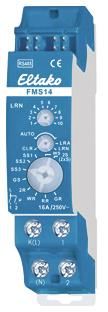

Multifunctional impulse switching relay, 1+1 normally open contact, potential-free 16A/250V AC, 230V LED lamps up to 400W, incandescent lamps 2000W, with DX technology. Bidirectional. Stand-by loss only 0.1-0.6 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. With the patented Eltako duplex technology, the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50Hz, thereby drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to K(L). This results in an additional stand-by loss of only 0.1 watts. Maximum current as a sum across both contacts 16A at 230V. If the supply voltage fails, it is switched off in a defined manner. If the 2 relays of the FMS14 are switched on, 0.6 watts are required. The sensors are taught in using the upper and middle rotary switches. For normal operation, the middle rotary switch is then set to AUTO and the lower rotary switch to the required function: 2S = impulse switch with 2 normally open contacts. (2xS) = 2-way impulse switch with one normally open contact each. WS = impulse switch with 1 normally open contact and 1 normally closed contact (standby loss 0.3W). SS1 = series switch 1 + 1 normally open contact with switching sequence 1. SS2 = series switch 1 + 1 normally open contact with switching sequence 2. SS3 = series switch 1 + 1 normally open contact with switching sequence 3. GS = group switch 1 + 1 normally open contact. 2R = switching relay with 2 normally open contacts. WR = switching relay with 1 normally open contact and 1 normally closed contact (standby loss 0.3W). RR = switching relay (quiescent current relay) with 2 normally closed contacts (standby loss 0.5W). GR = group relay 1 + 1 normally open contact. Switching sequence SS1: 0 - contact 1(K-1) - contact 2(K-2) - contacts 1 + 2. Switching sequence SS2: 0 - contact 1 - contacts 1 + 2 - contact 2. Switching sequence SS3: 0 - contact 1 - contacts 1 + 2. Switching sequence GS: 0 - contact 1 - 0 - contact 2. GR: relay with alternately closing contact. The LED under the upper rotary switch accompanies the learning process in accordance with the operating instructions and indicates control commands during operation by flashing briefly.
Type: FMS14
Questions & answers
What is the delivery time of Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14?
The article Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 30014003 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14 always at the best possible price. We can give you a discount of 2% on
Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14 we can offer you a price of 55,22 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Eltako 30014003 FMS14 RS485 bus switching actuator impulse switch relay FMS14 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
