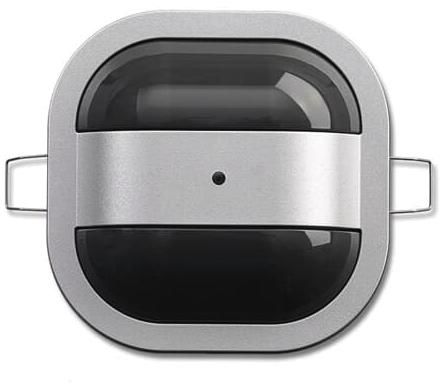

Busch Jaeger 2CKA006800A2780 BJ 6819/35-183 Busch presence detector universal BT DALI aluminum silver

Presence detector with mixed light measurement. Bluetooth
For brightness and motion-dependent control and switching of DALI operating devices.
For DALI broadcast operation (central telegram).
Supplies the necessary power for additional DALI operating and control devices.
Suitable for up to 45 DALI operating devices.
For changing the color temperature of >tunable white< lights/lamps that comply with the DALI standard IEC 62386-209 (Device Type 8).
Color temperature can then be set between 2,700 K - 6,500 K.
With additional switching output for HVAC control or for switching additional consumers (e.g. blackboard light).
Can be configured to completely switch off the DALI operating devices.
With Bluetooth interface for parameterization and operation.
Adjustment of all setting options via smartphone or tablet.
Light control via smartphone or tablet app.
Detection range (at 3 m installation height): circular: Seated people: up to Ø 10 m, walking people: up to Ø 12 m.
Extension of the detection range through extension combination.
Installation height 23 mm.
For semi-automatic, comfort and fully automatic operation.
Additional on/off option via button input.
With permanent light / permanent off function (8 hours), can be activated via intelligent extension input.
With timer-controlled basic lighting function.
With selectable burn-in function for fluorescent lamps.
With 2-stage automatic switch-off (according to EnEV / EN 15232).
With timer-controlled night glare protection function. With selectable presence simulation when not present. With integrated storage of the duty cycle (energy monitor).
With brightness-independent test mode for evaluating the detection range.
With teach-in function of the brightness switching threshold, IR service handheld transmitter required.
With detection display in test mode.
Ceiling installation via integrated spring clips.
Anti-twist protection via additional quick-release clamps. Adjustment
elements accessible from the front.
Monitoring density: 72 sectors with 640 switching segments.
Individual shutdown and sensitivity adjustment of individual sensors possible.
Switch-off delay: adjustable from approx. 1 min. - 30 min.
With selectable dynamic switch-off delay.
Suitable for suspended ceilings with a panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
For physical reasons, the detection range is smaller when approaching centrally.
When used in conjunction with a relay/contactor, an RC suppressor, item no. 6899, must be provided.
Free app for IOS and Android available in the App Store or Play Store.
Type: 6819/35-183
