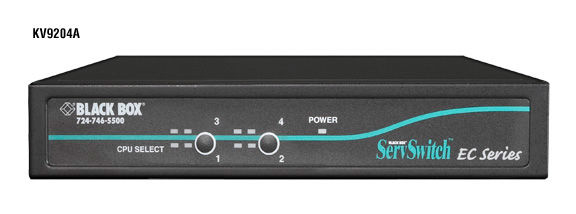

BlackBox KV9204A 4-Port ServSwitch EC für USB & PS/2 Server über eine USB-Konsole

Want the option of using either a PS/2(r) or USB keyboard and mouse to control a number of PS/2 and USB servers? The new ServSwitch(tm) EC for PS/2 and USB Servers and PS/2 or USB Consoles makes it all possible.Perfect for areas where you have a mix of servers and console control devices, this ServSwitch has a rear-panel slide switch that you use to select either PS/2 or USB console mode.Models are available for switching between 4, 8, or 16 servers from a single console. To expand your switching platform to include additional servers-up to 136 in all with the 16-port model-simply cascade units in a master-slave configuration.

Ideal for applications where you have a limited amount of space, the 1U-high ServSwitch EC can be used on the desktop. As an added space-saving feature, the switch requires just one HD15 connector for each server connection. Keyboard, monitor, and mouse circuitry is built into a single connector. (To order the cable for either PS/2 or USB servers, see ©Related Products© in the previous window.) The ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles also has on-screen display (OSD) features for switching between servers and managing server connections. Navigate through the OSD menus using a function key, and use the OSD interface to view each port#x0027;s connection status, lock a server from unauthorized access, and even assign server names that are up to 14 characters long. The switch stores all name entries in non-volatile memory.You can also switch servers by pushing front-panel buttons or by using a sequence of hotkeys on your keyboard. Or let the switch do it automatically for you with its AutoScan function, which enables the ServSwitch EC to scan and switch between servers at an interval determined by you. When AutoScan detects any keyboard or mouse activity, it suspends the scanning until activity stops, then resumes with the next computer in sequence. With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1440, the ServSwitch EC is DDC2B compatible, so you can use it with the latest digital monitors. What#x0027;s more, the switch is operating system independent and transparent to all applications.Buying TipsNOTE: When cascading multiple units, the master must have the same number as or more ports than the slave. The ServSwitch EC for PS/2 and USB Servers and PS/2 or USB Consoles can be cascaded with PS/2 only models (KV9004A, KV9008A, and KV9016A). To order these, see the ©Related Products© in the previous window. These products work with: * ServSwitch CPU Cables for EC Series and DT Low Profile Series, PS/2, 6- and 10-ft. (EHN70001) * ServSwitch CPU Cables for EC Series, PS/2, 15- and 30-ft. (EHN9000P) * ServSwitch CPU Cables for EC Series, USB (EHN90000U)

technical data:

SpecificationsAuto-Scan Intervals - 3, 8, 15, and 30 seconds Cable Length (Maximum) - At console: 6 mAt PC ports for PS/2 server: 9.1 mAt PC ports for USB server: 4.5 mOperating Systems Supported - Windows(r) 98/Me/XP, Windows NT(r), Windows 2000Resolution (Maximum) - 1920 x 1440User Controls - KV9204A: (4) port selection buttons;KV9208A, KV9216A: (8) port selection buttonsConnectors - KV9204A: Server: (4) HD15 F;Console: Keyboard: (1) 6-pin mini DIN F or (1) USB Type A F; Mouse: (1) 6-pin mini DIN F or (1) USB Type A F; Monitor: (1) HD15 FKV9208A: Server: (8) HD15 F;Console: Keyboard: (1) 6-pin mini DIN F or (1) USB Type A F; Mouse: (1) 6-pin mini DIN F or (1) USB Type A F; Monitor: (1) HD15 FKV9216A: Server: (16) HD15 F;Console: Keyboard: (1) 6-pin mini DIN F or (1) USB Type A F; Mouse: (1) 6-pin mini DIN F or (1) USB Type A F; Monitor: (1) HD15 FIndicators - KV9204A: (4) Port LEDs;KV9208A: (8) Port LEDs;KV9216A: (16) Port LEDsPower - 100-240VAC, 50-60 Hz, externalSize - KV9204A: 4.4 (1U) x 21.8 x 13 cmKV9208A, KV9216A: 4.4 (1U) x 43.9 x 17.8 cmWeight - KV9204A: 0.9 kgKV9208A: 2.2 kgKV9216A: 2.7 kg
