BlackBox AVU5004A Wizard Multimedia Transmitter/Broadcaster, Quad Video/stereo-audio

Designed and optimised for Digital Signage applications, our extenders will allow you to deliver your AV content to the most profitable locations without compromising on the security of your computers or on signal quality.These compact and robust units transmit VGA at 1280x1024 and high fidelity audio signals up to 300m over CatX infrastructure cable.With flexible installation options and huge expansion possibilities, this extender family allows you to build a tailored solution to fit your application. Our simple but effective video equalization and skew compensation options will ensure a great picture at every display so your message is always crystal clear.

There are several different Wizard Multimedia transmitter and receiver options available to suit a variety of applications. Wizard AVU5010A, AVU5001A and AVU5011AThe Wizard AVU5010A kit provides a single transmitter and receiver capable of extending to two remote display and speaker sets over a single CatX cable. The transmitter can also support a local monitor and speaker set at the source computer. The solution can be expanded by connecting further standard transmitters to the original module, each supporting their own receiver modules. The standard transmitter and receiver modules are available separately as the AVU5001A (transmitter) and AVU5011A (receiver).Wizard AVU5004A and AVU5111AThe Wizard AVU5004A transmitter and AVU5111A receiver modules are designed to provide potentially enormous expansion possibilities from the outset. Each AVU5004A transmitter is capable of directly feeding up to four AVU5111A receivers. Each receiver supports two remote display and speakers sets, but can also drive a further three receivers and their respective displays and speakers. Additional expansion is also possible by connecting further AVU5004A transmitters to the original transmitter, each supporting their own multiple AVU5111A receivers. A total of 3 cascades between the primary transmitter (connected to the PC) and any receiver is possible, permitting extremely large and flexible installations.In addition to brightness and sharpness adjustments, the AVU5111A also has skew compensation built in allowing you to optimize the displayed image to suit your cable type and length.

technical data:

Distance (Maximum) - 300m
Cascaded Distance - 1 cascade connection 250m; 2 cascade connections 200m; 3 cascade connections 175m
Resolution (Maximum) - 1600x1280@60Hz at 200m, 1280x1024@60Hz at 300m
Connectors -

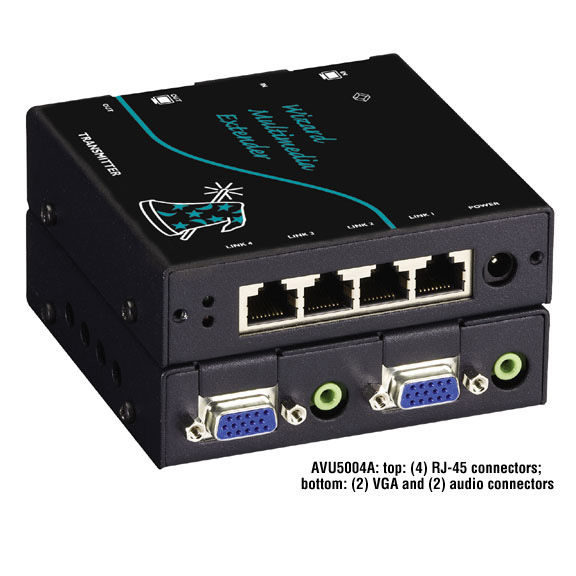

Transmitters: VGA F (2, one input one output), 3.5mm Audio Jack (2, one input one output), Power connector (1), RJ45; AVU5001A, AVU5010A, (1), AVU5004A (4)
Receivers: VGA F (2), 3.5mm Audio Jack (2), Power connector (1), RJ45; AVU5011A, AVU5010A (1), AVU5111A (2, one input one output)
Power - 100-240 VAC, 50-60Hz, external, auto-sensing with IEC connector
Size: 9.8D X9.5H X 2.6W (cm)
