Allnet ALL-VPN20 VPN/Firewall Dual-WAN router

Your rating:
Average rating
product review for Allnet ALL-VPN20 VPN/Firewall Dual-WAN router
( 4.5 / 5 ) 944 ratings

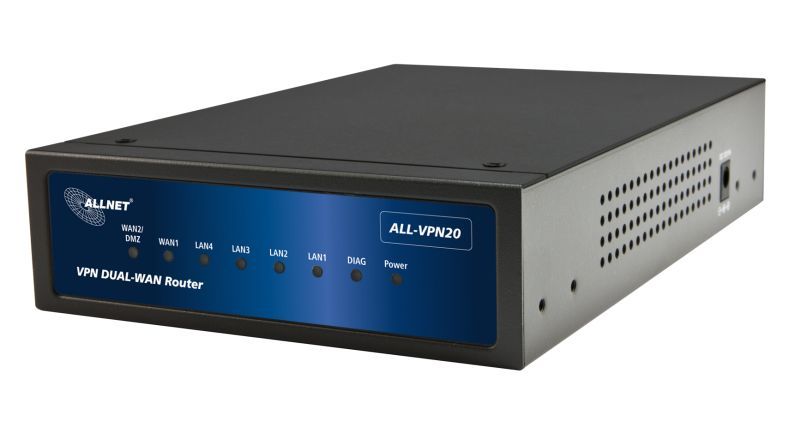

Allnet ALL-VPN20
This image may differ from the desired article.
Allnet ALL-VPN20Allnet ALL-VPN20
129,78 EUR
( 154,44 EUR incl. VAT )
≈ £108.63  |  ≈ $142.63
plus delivery charges: 55,00 €
in stockinfo_outline
1x Allnet ALL-VPN20 VPN/Firewall Dual-WAN router
End-Of-Life: 11. Sep 2026
Datasheet:file_download Download
Lieske Part No.:623846
Mfg Part No: ALL-VPN20
UPC/EAN: 4038816001115
Weight:1.166 kg

Product information for Allnet ALL-VPN20:

The Allnet ALL-VPN20 is a DSL router with integrated firewall and VPN functionality, specifically developed for small and medium-sized enterprises. It enables the connection of two independent broadband connections via Dual-WAN ports and offers features such as Load-Balancing, Auto Line-Backup, as well as support for IPSec and PPTP VPN connections. The device architecture is based on a MIPS64 processor, ensuring a bidirectional data throughput of up to 100 Mbps. The integrated hardware NAT acceleration supports performance in network address translation. The device is designed for networks with up to 50 users and is suitable for secure communication over encrypted connections.

Applications

The ALL-VPN20 is designed for companies requiring redundant internet connections to minimize downtime. The Dual-WAN function allows the combination of various broadband technologies such as ADSL2+, VDSL, or SDSL. The Load-Balancing function distributes data traffic across both connections, enabling more efficient use of bandwidth. In the event of a connection failure, the device automatically switches to the second connection, ensuring high availability. VLAN configuration on one WAN port allows flexible network segmentation.

Functions and Equipment in Detail

The device supports up to 20 simultaneous IPSec VPN connections and up to 10 PPTP VPN connections. IPSec connections can be used in Gateway-to-Gateway (Site-to-Site) or Gateway-to-Client configurations. Encryption is performed using DES, 3DES, or AES, and authentication uses MD5 or SHA1. The VPN Heartbeat monitors connections and ensures stable communication. PPTP connections are compatible with Windows 2000/XP Embedded client software. Configuration is done via a graphical user interface (GUI), enabling intuitive network management.

Technology Explained Simply

The MIPS64 processor ensures high processing performance and enables a data throughput of up to 100 Mbps in both directions. Hardware NAT acceleration reduces latency during network address translation. Stateful Packet Inspection (SPI) monitors data traffic and protects against threats such as Trojans, worms, or DOS attacks. The firewall also supports control of applications such as messaging and P2P, with five permission groups available. Access rules allow precise control over users' online behavior. File type execution control for formats such as Exe, Flash, JPEG, MP3, PDF, PNG, Rar, Zip, and others helps block potentially dangerous files.

Compatibility and Accessories

The router is suitable for use with various broadband technologies including ADSL2+, VDSL, and SDSL. The WAN ports support DHCP IP assignment, static IP assignment, ADSL PPPoE, PPTP, and Transparent Bridge. QoS functions enable intelligent bandwidth management, allowing applications such as Voice over IP, video streaming, or online gaming to be prioritized. Bandwidth can be assigned time-controlled, and specific users, groups, or applications can be prioritized. The integrated firewall supports NAT Traversal (NATT) and VPN pass-through.

Installation and Mounting

Installation is performed via the graphical user interface (GUI), which enables easy configuration. Setup instructions are available for Windows, Android, and iOS. Physical mounting is done using the integrated mounting holes, with no special tools required. The network interfaces include two WAN ports, one DMZ port (as WAN2/DMZ), and four LAN ports. Device configuration is done via the web interface, accessible through a standard web browser.

Operational Advantages

The ALL-VPN20 offers high availability through its Dual-WAN architecture with Auto Line-Backup. The Load-Balancing function optimizes bandwidth usage, and the integrated firewall protects the network from external threats. Support for up to 30,000 simultaneous sessions makes the device suitable for medium-sized networks. QoS functions enable targeted bandwidth distribution, allowing critical applications to be prioritized. VPN functions enable secure connections between locations or for mobile employees.

General
ProcessorMIPS64
Flash memory32 MB
DRAM memory128 MB
WAN ports2
DMZ port1
LAN ports4
NAT throughput100 Mbps
VPN throughput (3DES)76 Mbps
Maximum IPSec-VPN connections20
Maximum PPTP-VPN connections10
EncodingDES/3DES/AES
AuthenticationMD5/SHA1
Load-balancing modesSession/Advanced Session/IP
Firewall functionsStateful Packet Inspection, application management, access rules, execution control
Network technologiesADSL2+, VDSL, SDSL
IP assignmentDHCP, static IP
VLAN configurationon a WAN port
CompatibilityWindows 2000/XP Embedded PPTP Client
VPN pass-throughYes
NAT Traversal (NATT)Yes
Auto Line-BackupYes
GUI managementYes


Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Product data sheet
Datasheet for Allnet ALL-VPN20, EAN: 4038816001115
