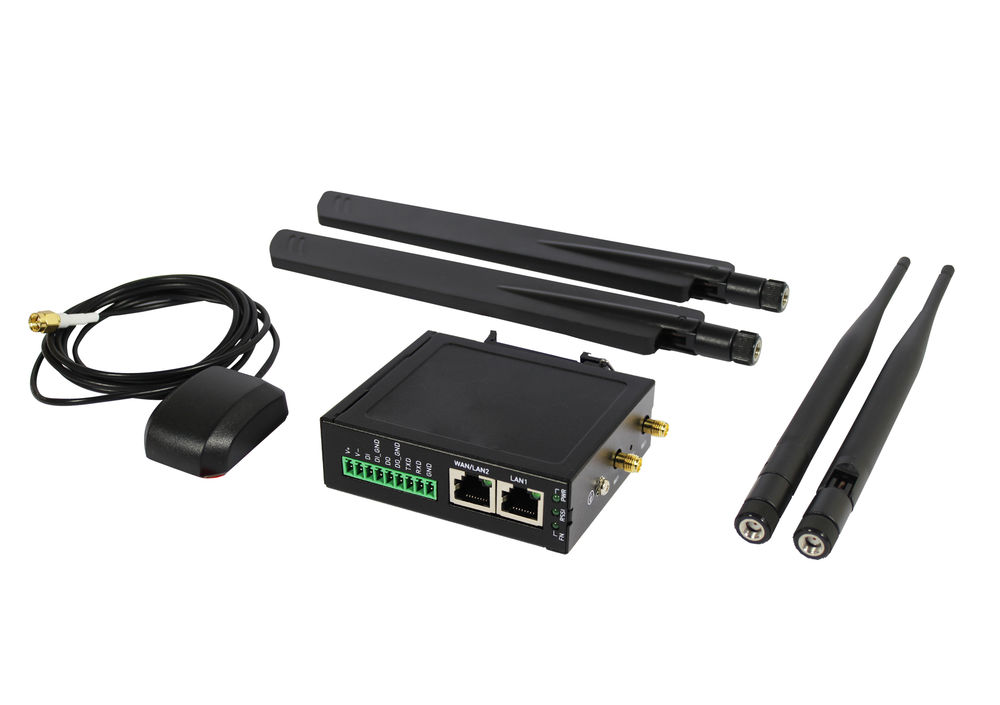

ALLNET ALL-RUT22GW
Compact Industrial 4G LTE Cellular Router 4G LTE GPS WiFi

Highlights: 1 x 10/100 Base-TX RJ45 LAN port 1 x 10/100 Base-TX RJ45 WAN port Multi-band support for FDD LTE / TDD LTE / WCDMA / GSM / LTE Cat4. Compatibility with IEEE 802.11b/g/n Wi-Fi standards Built-in micro SIM port, serial port (RS-232 or RS-485) and DI/DO interfaces. Ultra-compact and lightweight metal design with DIN rail mounting. LED indicators for connection and data transfer status. Industrial grade from -30 to +70°C for use in harsh environments. Flexible power supply range of 8-48 VDC (max. 7W). IPv4 and IPv6 dual stack management. VPN tunnel, firewall and cryptographic protocols for cybersecurity. Support serial communication protocols for M2M connectivity. No power supply included see accessories
The ALLNET ALL-RUT22GW is a compact, lightweight and cost-effective 4G LTE cellular router for use in industrial environments with an extended temperature range. The ALL-RUT22GW router is equipped with two Ethernet network ports and uses 2G, 3G and 4G mobile networks for wired and wireless communication in industrial environments. Equipped with a serial RS232 port and digital input/output interfaces, the router is easy to configure and captures real-time data transmissions for industrial IoT and machine-to-machine applications extremely quickly.
With VPN tunnel, firewall, TR069 and SNMP trap, the ALL-RUT22GW supports highly secure authentication, encryption and management of your data between public and private networks. The router can be used flexibly in different environments and applications in a temperature range of -30 to approx. +70°C and a flexible input voltage range of 8 to 48V.
The ALL-RUT22GW industrial router is the perfect choice for simplifying complex solutions and allowing you to customize your services for industrial networks and smart city applications.Technical Details: Cellular InterfaceStandards: (Please see ordering information for optional band)4G: FDD LTE, TDD LTE 3G: WCDMA 2G: GSM/EDGE Bands 4G 3G 2G REGION FDD LTE TDD LTE WCDMA GSM / EDGE EU B1(2100), B3(1800),
B5(850), B7(2600),
B8(900), B20( 800) B38(2600), B40(2300), B41(2500) B1(2100),
B5(850),
B8(900) B3(1800), B8(900) Europe
Africa
Middle East
Korea
Thailand
India LTE Data Rate: CAT 4, 150Mbps (DL), 50Mbps (UL) Hardware InterfaceHigh Performance 550 MHz SoC with 128MByte Flash 1 x Micro SIM Connector (push-push type) 1 x LAN 10/100 Mbps Ethernet port 1 x WAN 10 /100 Mbps Ethernet port WPS / RESET Button 1 x RS-232 (TXD/RXD/GND) 1 x RS-485 (D+/D-/GND) (M330-W5 Model) 1 x DI (Non-Isolated), 1 x DO (Non-Isolated) 2 x SMA connectors for detachable LTE Antenna 2 x RP-SMA connectors for detachable Wi-Fi Antenna 1 x SMA connector for detachable GPS antenna Wi-Fi InterfaceCompliant with IEEE 802.11 b/g/n Wi-Fi standards 2.4 GHz radio band for wireless 2T2R 300 Mbps wireless operation rate Wireless security with WPA2-PSK(AES) Multiple SSIDs Wireless MAC Filtering Wireless client isolation Physical CharacteristicsEnclosure:Metal Case Dimensions (W x H x D):91 x 28 x 74 mm Weight:250 g (0.5512 lb) Installation:DIN-rail / Wall mounting LED Display1 x Power LED 1 x Ethernet LED for each port (LAN/WAN) 1 x RSSI LTE LED 1 x Function LED (User defined by Web) Power SupplyPower Consumption 7 Watts(Max) Power Input 8 ~ 48 VDC SoftwareNetwork Protocols: IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client, PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,
VRRP, OSPF, Message Queue Telemetry Transport
(MQTT Broker), BGP, Flow (Modbus master ? MQTT client)Routing/Firewall: NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP-1/2, IPS, Policy RouteVPN: OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256), GRE, PPTP, L2TPWireless Connectivity: WAN Wi-Fi ClientOthers: DDNS, QoS, UPnP, SMS Action, GPS Track Drawing, GPS TCP PushAlarm: DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail, TR069
Management SoftwareWeb GUI for remote and local management, CLI Syslog monitor SNMP, TR069 FOTA (Firmware over the Air) Remote management via SSH v2 , HTTPS Local management via Telnet, SSH v2, HTTP/HTTPS EnvironmentOperating Temperature -30 ~ +70°C Storage Temperature -40 ~ +85°C Ambient Relative Humidity 10 ~ 95% (non-condensing) Humidity 0 ~ 95% (non -condensing) Standards and CertificationsEMC:CE, FCC EMI:EN 301489 , FCC Part 15B Class B EMS:EN 301489 Vibration:IEC60068-2-6 Radio : EN 301511, EN 301908-1, EN 301908-2, EN 301908-13 , EN 300328, EN 303413, EN 62311
