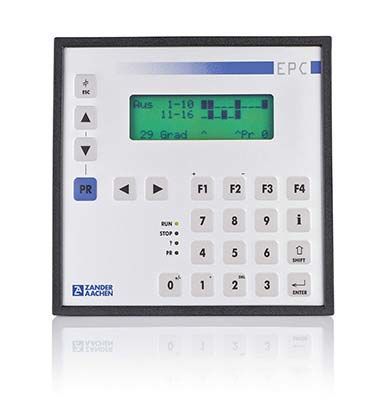

Zander Aachen 585212 EPC16BT DC 24V, 16 output 100mA

Description:

The EPC16 is a high-performance programmable cam controller equipped with a 16-bit processor system. Designed to precisely control motion sequences in processing machines, packaging systems, and other industrial applications, the EPC16 features an integrated user interface, text display, and programming unit, ensuring user-friendly operation for demanding automation tasks.

Features:

• Integrated Control and Interface:
- Combines control unit and operator terminal in one device
- Plain-text display with multilingual support
- Built-in programming unit

• High-Performance Capabilities:
- Encoder connection up to 500 RPM
- Automatic dead-time compensation for precise control
- Real-time optimization of programs during machine operation
- Fast real-time operating system for reliable performance
- Supports up to 8 simultaneous programs

• Robust Design:
- Panel-mounted enclosure with splash-proof tactile membrane keyboard
- Fully shielded against electromagnetic interference


Functions:

• Automatic Dead-Time Compensation:
- Adjusts mechanical delays based on machine speed
- Optimizes signal timing for precise actuator control at any speed

• User-Friendly Programming:
- Flowchart-based programming with guided plain-text dialogs
- Multilingual operator interface
- Displays real-time operational data such as machine speed, position, and angle
- Configurable units of measurement (e.g., m, mm, inch)
- Optionally programmable with EPRPRO for Windows®

• Powerful Process Optimization:
- Angle and switching point corrections during operation
- Save and copy up to 8 programs, including segment-based copying

• Flexible Integration:
- 16 digital switching outputs for machine control
- Serial interfaces: V24, RS485, RS422, or 20mA


Applications:

• Packaging machines
• Painting systems
• Bakery equipment
• Turning machines
• Filling systems
• Testing devices
• Cleaning machines
• Labeling machines
• Textile machines

Technical Specifications:

• Processor: 16-bit processor system
• Inputs: Encoder connection up to 500 RPM
• Outputs: 16 digital switching outputs
• Enclosure: Panel-mounted, splash-proof
• Interfaces: V24, RS485, RS422, 20mA (optional)
• Memory: Stores up to 8 programs

Safety Instructions:

• Installation and commissioning must be performed by trained professionals
• Compliance with all relevant safety regulations is mandatory

Included Items:

• EPC16 cam controller
• User manual
• Installation accessories

*Note: Errors and technical changes reserved.*
Type: EPC16BT DC 24V
