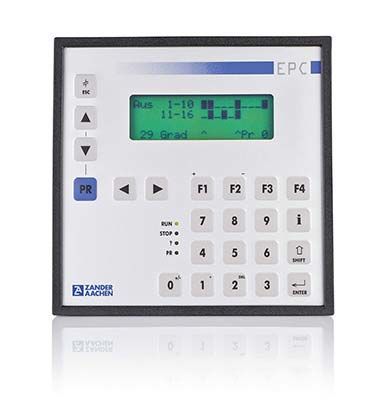

Zander Aachen 585210 EPC16BT 230V 50-60Hz, 16 output 100mA

The EPC16 is a high-performance, programmable cam controller equipped with a 16-bit processor system. Designed for precise control of motion sequences in processing machines, packaging systems, and other automated applications, the EPC16 combines real-time operations, ease of programming, and automatic dead time compensation to deliver intelligent and flexible solutions for demanding industrial tasks.

Features:

• Integrated Control and Interface:
- Combines control unit and operator terminal in one device
- Plain-text display with multilingual support
- Integrated programming unit

• High-Performance Functions:
- Encoder connection up to 500 RPM
- Automatic dead time compensation for speed-dependent optimization
- Program optimization during machine operation
- Supports up to 8 programs simultaneously

• Flexible Interfaces:
- 16 digital switching outputs
- Serial interface (V24, alternatively RS485, RS422, or 20mA) for seamless integration with PLCs, PCs, or terminals

• Robust Design:
- Panel-mounted enclosure with splash-proof membrane keyboard
- Fully shielded for enhanced interference protection


Functions:

• Automatic Dead Time Compensation:
- Continuously calculates mechanical delays based on machine speed
- Optimizes output signals through advanced early switching
- Ensures precise actuator control at all speeds

• Programming and Usability:
- Program creation using flowcharts with guided plain-text dialogs
- Easy to learn and adapt via intuitive operation
- Displays operational data such as machine speed, position, and angle on a plain-text display
- Flexible unit display (e.g., mm, m, inch) via conversion factor

• Process Optimization Flexibility:
- Selective switching point corrections for individual outputs during operation
- Segment-wise copying of programs


Applications:

• Packaging machines
• Painting systems
• Bakery equipment
• Turning machines
• Filling systems
• Testing devices
• Labeling machines
• Textile machines

Technical Specifications:

• Processor Type: 16-bit processor system
• Inputs: Encoder connection up to 500 RPM
• Outputs: 16 digital switching outputs
• Enclosure: Panel-mounted, splash-proof
• Interfaces: V24, RS485, RS422, 20mA (optional)
• Program Memory: Stores and retrieves up to 8 programs
• Languages: Multilingual plain-text display

Safety Instructions:

• Installation and commissioning must be performed by qualified personnel
• Compliance with all relevant safety regulations is mandatory

Included Items:

• EPC16 Cam Controller
• User manual
• Installation accessories

Note: Errors and technical changes reserved.
Type: EPC16BT 230V 50-60Hz
