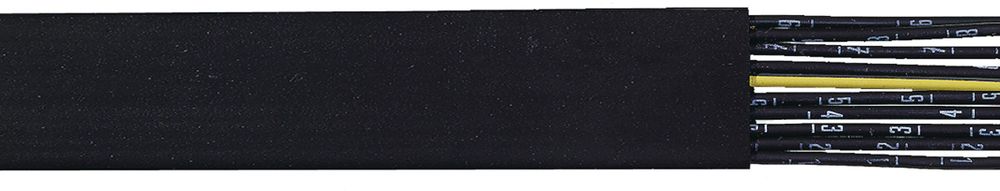

VDE-Kabel 682602008 NGFLGÖU-J 7x1.5 sqmm neoprene control line. flat
|
8,11 EUR |
|||||||||||
|
incl. 0,78 EUR copper surcharge ( 9,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 649890 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 682602008 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 682602008:
Application:
In dry and damp rooms and outdoors with medium to heavy mechanical stress, particularly when the cables are exposed to strong and frequent bends in just one plane. As connection and connecting cables for power supply, control, regulation and measured value transmission, in conveyor technology for operation on cable trolleys, for feeding and controlling trolleys, for operating high-bay warehouses, for power supply and control as well as measured value transmission and data acquisition, in industrial plants for controlling and monitoring work processes, in control, measurement and regulation technology and for controlling and monitoring production processes and assembly lines.Structure:
Conductor: bare copper strand, extra-fine
wire Separating layer
Core insulation: Neoprene mixture
Up to 3 cores parallel to each other.
Up to 4 cores in groups, groups
separated by a bar
Core identification: VDE 0293-308
Sheath: Neoprene mixture
Color: black
Note:
G = with protective conductor gn-ge
Technical specifications:
Nominal voltage: 300/500 V
Test voltage: 2000 V
Temperature range: -25 °C - +60 °C (moving)
-40 °C - +70 °C (not moving)
+90 °C (on the conductor)
Bending radius: 12 mm
3d 4d 5d (free movement)
3d 4d 5d (forced guidance such as cable trolley operation)
4d 4d 5d (forced guidance such as drag chain operation)
3d 3d 4d (fixed installation)
d = cable thickness
Product advantages: - small bending radii - high flexibility - small space requirement - oil-resistant
- flame-retardant.
Type: NGFLGÖU-J 7 X 1,5
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
