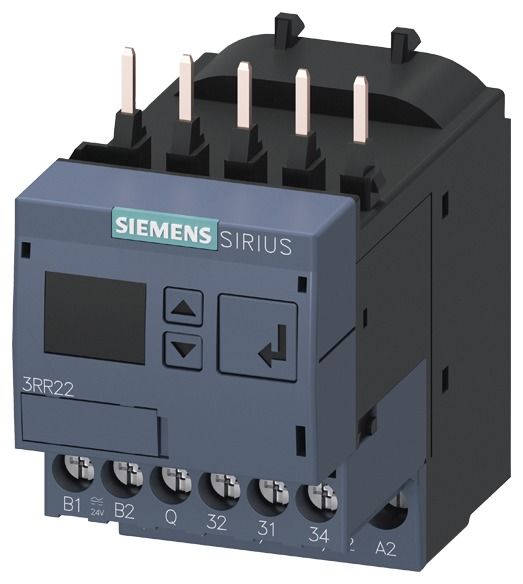

Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A

This image may differ from the desired article.

282,57 EUR

( 336,26 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Datasheet:

Download

Lieske Part No.:

272328

Mfg Part No:

3RR22411FW30

UPC/EAN:

4011209787285

Weight:

0.2 kg

Graduated prices net

From pieces	Price per pieces
5	265,62 EUR
10	248,66 EUR
15	231,71 EUR
20	214,75 EUR

Further Switching units / measuring, control relay from Siemens Further products in category Switching units / measuring, control relay All products of Siemens

Product information for Siemens 3RR22411FW30:

Monitoring relay, can be attached to 3RT2 contactor, size S00 standard, digitally adjustable Apparent/active current monitoring 1.6-16 A, 20-400 Hz, 3-phase supply 24-240 V AC/DC 1 changeover contact, 1 semiconductor output for alarm and warning Monitoring for current overshoot and undershoot Phase failure, wire break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without error memory Start-up delay 0-99 s Noise peak suppression 0-30 s Pause after error 0-300 min Screw connection technology SIRIUS 3RR2 monitoring relay for connecting to SIRIUS 3RT2 contactors or for stand-alone installation for multi-phase current monitoring of the entire system or the driven process. Reliable monitoring for cable breakage, phase failure, phase sequence, residual current, motor blocking and much more creates increased system availability. Actual value displays, status messages and clear error messages enable fast and reliable diagnosis. Control connection via IO-Link is also possible.You also save costs because only one device is required to monitor a motor along the entire torque curve and no separate current transformers are needed. Direct attachment to the 3RT2 contactors means there is no additional wiring work in the main circuit. You also benefit from the wide-voltage power supplies for worldwide use.Analog adjustable, 2-phase versions and digital adjustable, 3-phase versions (with and without IO-Link) are available, each in three sizes with different current measuring ranges, with two different supply voltages and two connection types.Suitable carriers are available for individual installation of the 3RR2 monitoring relays.SIRIUS relays - a program for all cases.

Product data sheet

Datasheet for Siemens 3RR22411FW30, EAN: 4011209787285

Questions & answers

What is the delivery time of Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A?

The article Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RR22411FW30 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A always at the best possible price. We can give you a discount of 2% on Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A we can offer you a price of 265,62 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Siemens 3RR22411FW30 3RR2241-1FW30 monitoring relay, mountable a.Schütz 3RT2 S00 Stand.1,6-16A via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
