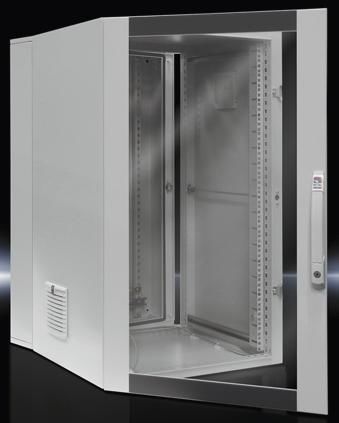

Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable
|
1.301,08 EUR |
|||||||||||
|
( 1.548,29 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| End-Of-Life: | 21. Aug 2025 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 279876 | ||||||||||
| Mfg Part No: | 7721535 | ||||||||||
| UPC/EAN: | 4028177551039 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7721535:
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 54 in conjunction with solid gland plate
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top
Wall section: Gland plate with brush strip, bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
Hinged part: Side outlet filters left and right
Earth rail with star earthing
4 wall mounting brackets 10 mm
Security lock 3524 E
Comfort handle and 2-point locking
Note: Enclosure 673 mm deep with reinforced wall mounting bracket
Packs of: 1 pc(s).
EAN: 4028177551039
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: Pre-configured
Dimensions: Width: 600 mm
Height: 1012 mm
Units: 21 U
Depth: 673 mm
Depth hinged part: 516 mm
Installation depth: 620 mm
Clearances: Clearance width: 502 mm
Clearance height: 949 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 61.3 kg
Type: DK 7721.535
Questions & answers
What is the delivery time of Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable?
The article Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7721535 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable always at the best possible price. We can give you a discount of 2% on Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Rittal 7721535 DK Wall-mounted enclosures, 3-part, WHD: 600x1021x673 mm, 21 U, Pre-configured, with mounting angles, depth-variable we can offer you a price of 1.281,56 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
