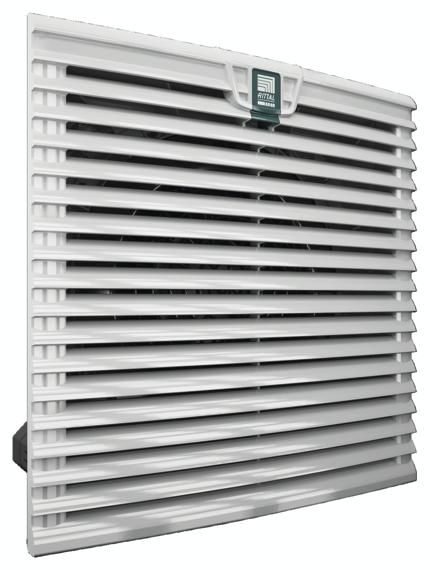

Rittal 3243100 SK TopTherm fan-and-filter unit, 550/600 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm
|
-7% 163,62 EUR 175,07 EUR |
|||||||||||
|
( 194,71 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 985835 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3243100 | ||||||||||
| UPC/EAN: | 4028177652101 | ||||||||||
| Weight: | 3.52 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3243100:
Protection category IP to IEC 60 529: IP 54
NEMA 12
With hose-proof hood: IP 54
With hose-proof hood: NEMA 3
With hose-proof hood: NEMA 3R
With hose-proof hood: NEMA 4
With hose-proof hood: NEMA 4X
With fine filter mat or hose-proof hood: IP 54
With fine filter mat or hose-proof hood: NEMA 12
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fan-and-filter units, we recommend using the enclosure internal thermostat, the speed control or the digital enclosure internal temperature display and thermostat
Packs of: 1 pc(s).
EAN: 4028177652101
Customs tariff number: 84145100
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): At 50 Hz: 550 m³/h
At 60 Hz: 600 m³/h
Air throughput with outlet filter including standard filter mat: Number of outlet filters: 1
Number of outlet filters: 2
Model No. of outlet filter: SK 3243.200
Model No. of outlet filter: SK 3243.200
At 50 Hz: 465 m³/h
At 50 Hz: 508 m³/h
At 60 Hz: 510 m³/h
At 60 Hz: 548 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 323 mm
Height: 323 mm
Required mounting cut-out: Width: 292 mm
Height: 292 mm
Build depth: 25 mm
Installation depth: 118.5 mm
Temperature range: Bearing: -30°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 70 W
At 60 Hz: 87 W
Rated current (max.): At 50 Hz: 0.37 A
At 60 Hz: 0.39 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Noise level: At 50 Hz: 59 dB(A)
At 60 Hz: 61 dB(A)
Diagonal fan: Diagonal, 1~ capacitor motor
Weight/pack: 3.58 kg
Type: SK 3243.100
