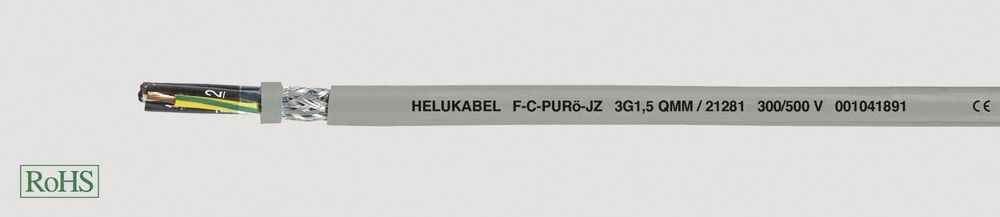

HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M
|
511,23 EUR |
|||||||||||
|
incl. 124,14 EUR copper surcharge ( 608,36 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 1103543 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21302-100 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 21302-100:
Technical data:
Special PUR hose cable based on DIN VDE 0285-525-1 / DIN EN 50525-1Temperature range moving -20°C to +80°C fixed -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Coupling resistance max. 250 Ohm/km
Minimum bending radius moving 10x cable Ø fixed 5x cable Ø
Radiation resistance up to 100x106 cJ/kg (up to 100 Mrad)
Structure:
Bare copper wire, according to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of oil-resistant PVC compound type TI2 based on DIN VDE 0207-363-3 / DIN EN 50363-3
Core identification in accordance with DIN VDE 0293 black cores with continuous white numbering
Cores stranded in layers with optimal lay lengths
Foil wrapping Shielding
braid made of tinned copper wires, coverage approx. 85%
Fleece wrapping
Outer jacket made of special full polyurethane mixture type TMPU in accordance with DIN EN 50363-10-2
Jacket color: gray (RAL 7001) with meter marking
Properties:
Resistant to UV rays Oxygen Ozone Hydrolysis Microbes
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Notes:
Unshielded analogue type: PURö-JZ
Use:
Extremely robust control cable, which is characterized by high abrasion resistance and notch toughness. With high-quality oil-resistant PVC core mixture. Due to its resistance to mineral oils, especially coolant emulsions, it is used in machine, tool and plant construction, in rolling mills and steelworks in particularly critical areas. Its good flexibility means it can be installed quickly and safely. Suitable for medium mechanical stress for flexible use with free movement without tensile stress and without forced movement in dry, damp and wet rooms and outdoors. The high shielding density ensures interference-free transmission of signals and impulses. The ideal interference-protected control cable for the above applications. EMC = Electromagnetic Compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area all around.
Standard lengths: 100 m, 500 m, 1000 m
Subject to technical changes.
Type: F-C-PURö-JZ grau
The item price shown refers to 100 meters Helukabel 21302-100
Questions & answers
What is the delivery time of HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M?
The article HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 21302-100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M always at the best possible price. We can give you a discount of 2% on HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M we can offer you a price of 505,42 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
HELU FC-PURö-JZ grey HELUKABEL PUR-Schl FC-PURÖ-JZ 4G2,5 mm² Standard length: 100 M is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
