Electrics ➤ Installation ➤ Ventilators and Accessories ➤ Wall-mounted ventilators ➤ Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst.
Helios Ventilatoren Logo

Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst.

Your rating:
Average rating
Rating for Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst.
( 4.7 / 5 ) 19 ratings
Helios Ventilatoren 5771
This image may differ from the desired article.
2.301,75 EUR
( 2.739,08 EUR incl. VAT )
plus delivery charges
2025-10-03Delivery time on requestinfo_outline
1x Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst.
Printing view Bookmark Wholesale Inquiry Suggest price
Lieske Part No.:578420
Mfg Part No: 5771
UPC/EAN: 4010184057710
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
22.198,17 EUR
42.094,59 EUR
61.991,01 EUR
81.887,44 EUR
Further Wall-mounted ventilators from Helios VentilatorenFurther products in category Wall-mounted ventilators All products of Helios Ventilatoren

Product information for Helios Ventilatoren 5771:

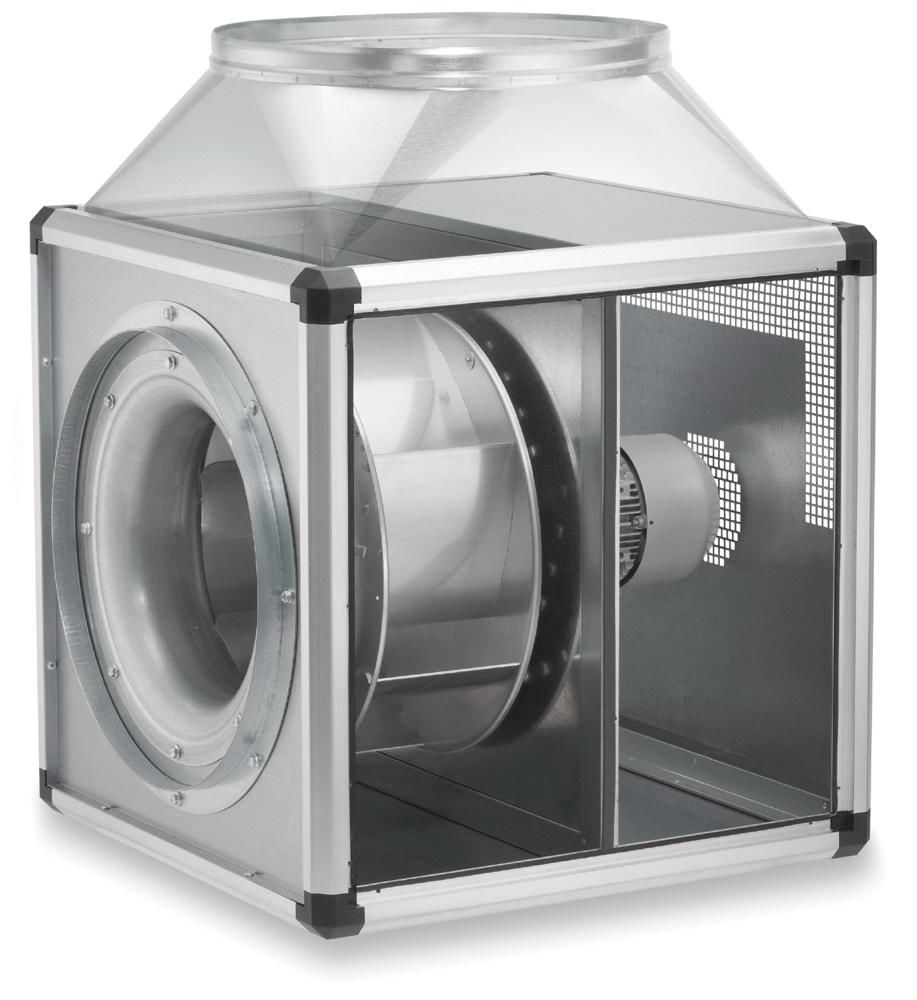

Cubic ventilation box with low-loss pipe connection nozzles on the pressure and suction side including flexible sleeves (suitable for temperatures up to 120°C) to prevent structure-borne noise. Variable housing panels for optimal adaptation to structural conditions. Motor located outside the air flow, therefore can be used to convey dirty, hot air up to max. 120 °C. With condensate tray and enclosed condensate drain as standard. Area of application: Commercial kitchens and many process technology applications. Easy positioning thanks to standard crane hooks. Self-supporting housing frame construction made of aluminum hollow profiles. Double-walled, 20 mm thick side panels made of galvanized sheet steel, sound and heat insulated by lining with non-flammable mineral wool. High-performance radial impeller with backwards curved aluminum blades on a galvanized steel disk, directly driven. Vibration-free operation due to dynamic balancing together with the motor in accordance with quality level 6.3 according to DIN ISO 1940 T.1. Drive motor in closed, maintenance-free design, located outside the conveying flow. Speed can be controlled by voltage reduction, built-in thermal contacts on terminal block, closed, low-noise ball bearings with long-term lubrication. Mains connection on the terminal box integrated in the device (IP54).
Type: GBD 355/4/4 T120


Questions & answers

What is the delivery time of Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst.?

The article Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst. is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helios Ventilatoren 5771 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst. always at the best possible price. We can give you a discount of 2% on Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst. we can offer you a price of 2.198,17 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Helios Ventilatoren 5771 Helios GBD 355/4/4 T120 GigaBox f.Temp., To 120 ° C 3-400V / 50Hz drehzahlst. via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
