CableEye / CAMI Research 829A

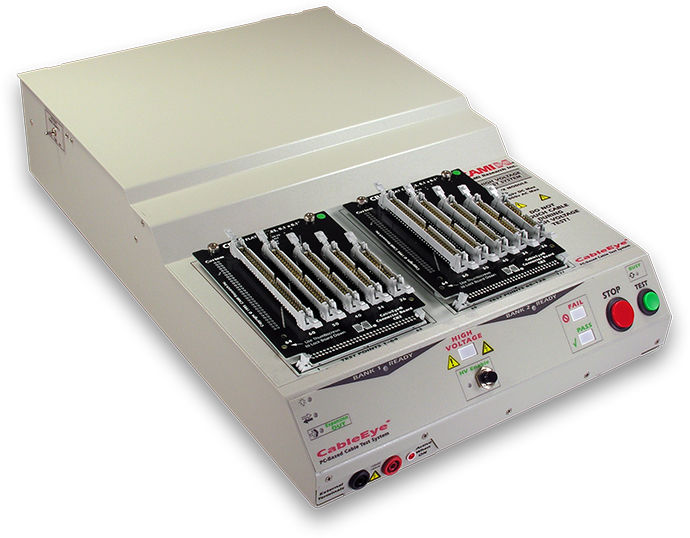

CableEye 829-21 / HVX high-voltage test system, up to 2100VDC/1200VAC, 128 measuring points, resistance and insulation measurement

The HVX-21 is the high voltage tester in the CableEye series for measurements up to 2100VDC/1200VAC. In the low voltage range up to 10V it offers the same functionality as the M3U. In addition, it is possible to test the insulation resistance of the respective test object with an adjustable voltage of up to 2100VDC/1200VAC.
The CableEye HVX offers: 128 (152) test points, expandable by 128 to 1024 test points each Test for continuity, open connections, short circuits, incorrect wiring and sporadic errors Resistance measurement between 0.5 and 10MO adjustable as threshold values in the low voltage range (10V) Measurement of diodes -Direction and reverse voltage High voltage test with volt-accurate test voltage up to 2100VDC/1200VAC Insulation resistance test of up to 1GO Definable ramps and hold times, as well as fast DC test port for connecting external insulation measuring devices Optional 4-wire measurement for recording resistances from 1mO Robust metal housing Built-in Test button and indicators for ready, match and fail states Probe for detecting open-ended cables Port for connecting a footswitch (model 714) and indicators for mounting the device behind a panel PC software Factory calibration certificate ( Annual calibration recommended) European power supply USB interface cable 1 year warranty and software upgrade support (optionally renewable annually) Incl. 2 x CB29 board with 64 screw terminal connections each.
Note: If desired, the CB29 included in the scope of delivery can also be replaced with another board of the same value.
Optionally, the device can be expanded with: Up to 2560 measuring points using expansion modules Over 60 different interface boards [] Additional hardware accessories [] Additional software options [] Customer-specific adapters, devices and software can be created on request. Talk to us!
